Micro Traxion

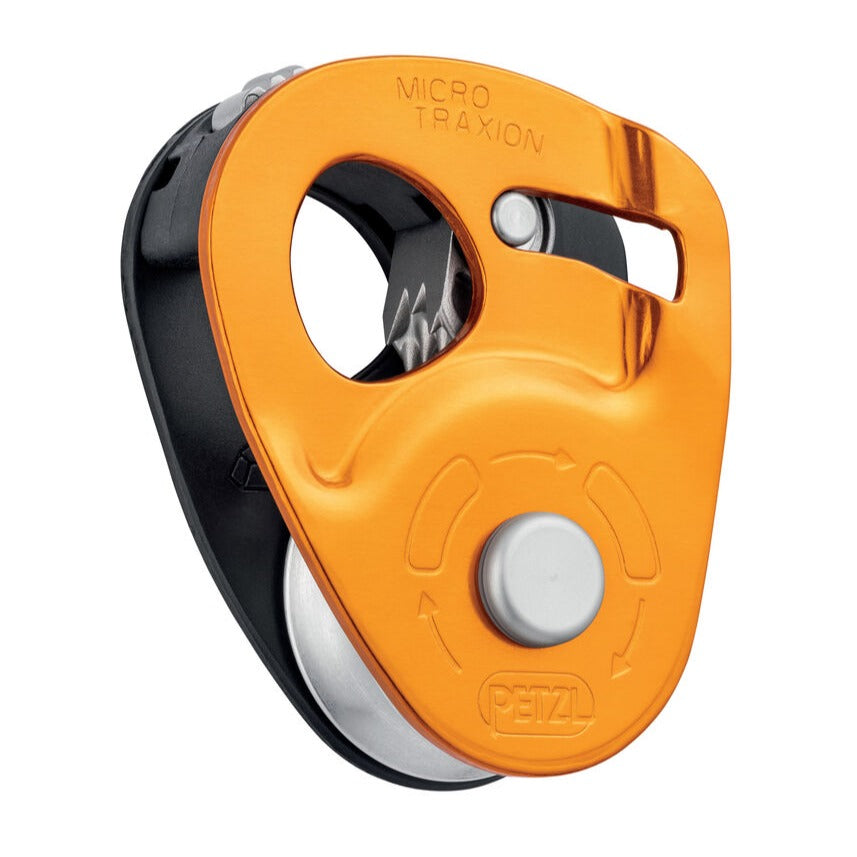

Petzl MICRO TRAXION

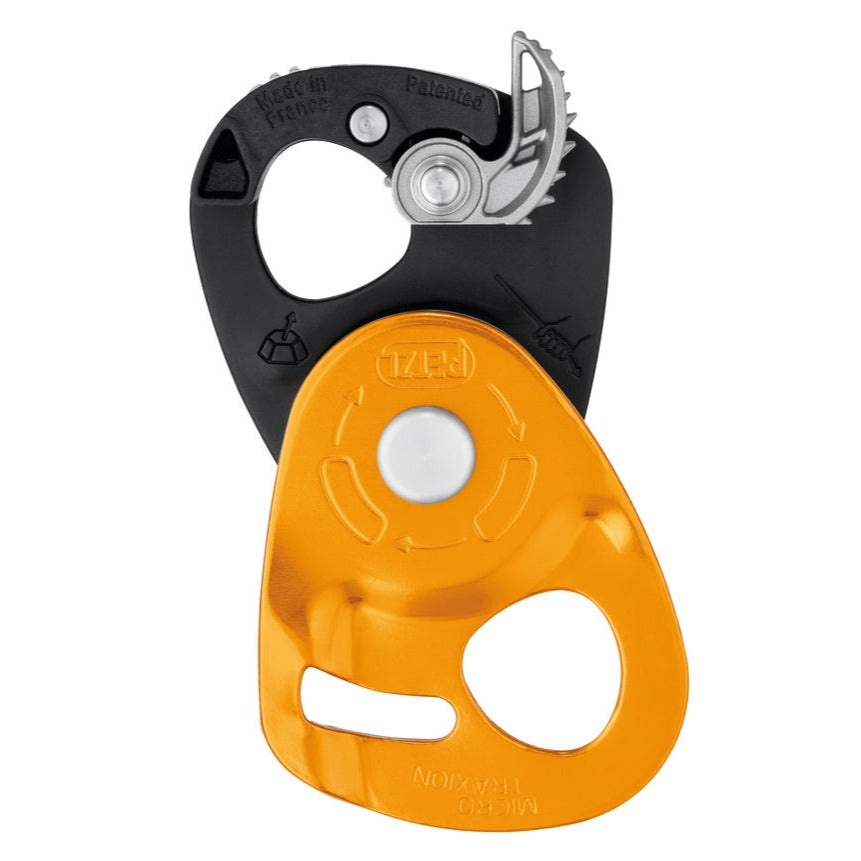

The Petzl MICRO TRAXION is a compact, lightweight progress-capture pulley designed for crevasse rescue, hauling, self-rescue, and emergency rope ascent. Its cam can be locked open, allowing it to function as a simple pulley when progress capture is not required.

Sealed ball bearings provide 91% efficiency, and the toothed cam with a self-cleaning slot is designed to work on frozen or muddy ropes.

Detailed use cases

• Crevasse-rescue hauling systems
• Progress capture in mechanical-advantage systems
• Self-rescue and emergency rope ascent
• Pack and equipment hauling
• Simple-pulley use with the cam locked open

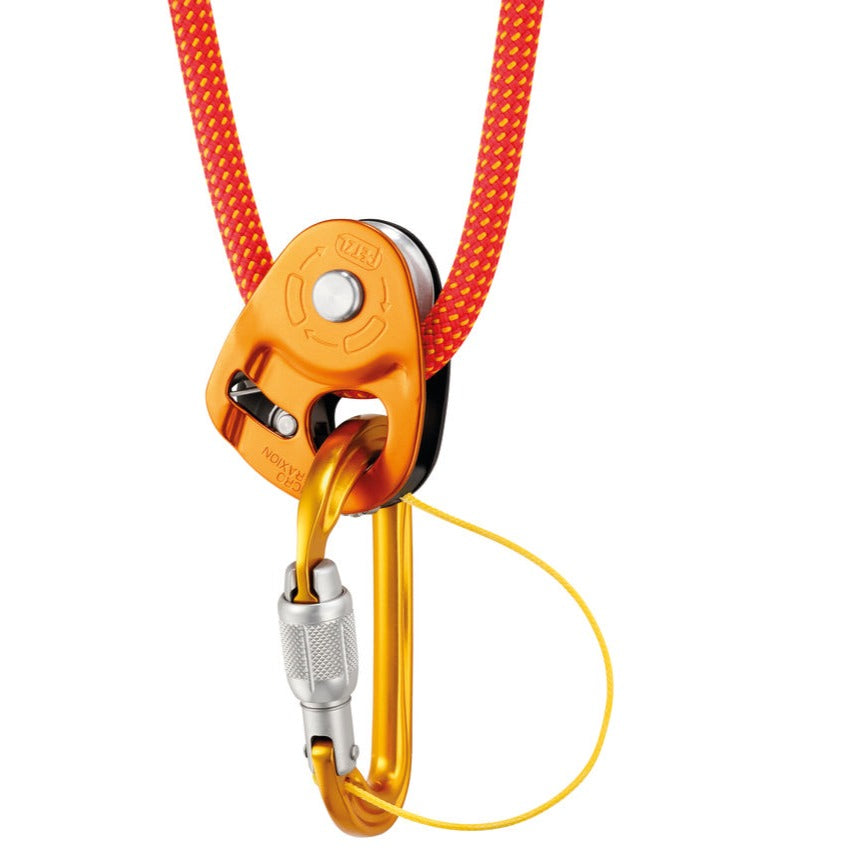

• Loss-resistant setups using the connection hole and a compatible carabiner with cord

Users must be trained and competent, verify full-system compatibility, and follow Petzl’s technical notice.

Specifications

• Weight: 85 g
• Rope compatibility: 7–11 mm
• Sheave diameter: 27 mm
• Sheave type: Sealed ball bearings
• Efficiency: 91%
• Working load: 5 kN
• Breaking strength: 15 kN
• Working load as a progress-capture pulley: 2.5 kN
• Breaking strength as a progress-capture pulley: 4 kN

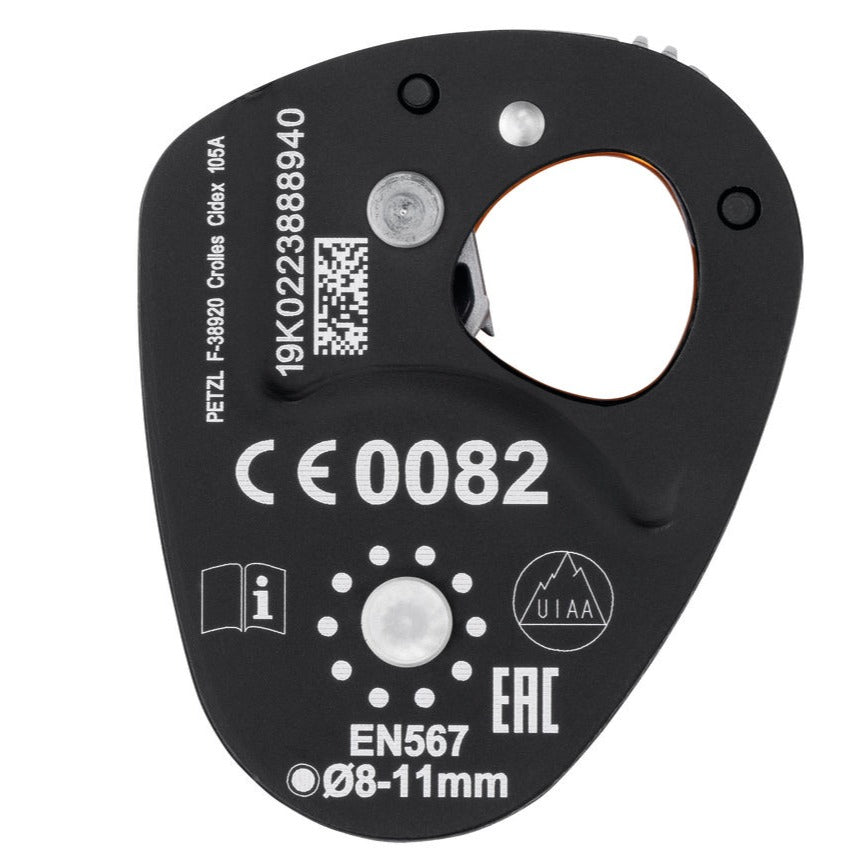

• Certifications: CE EN 567 and UIAA
• Compatible with RAD LINE 6 mm cord
• PUR’LINE 6 mm compatibility is limited to hauling a pack
• Manufacturer guarantee: 3 years

MICRO TRAXION versus NANO TRAXION

Choose MICRO TRAXION when you need the flexibility to lock the cam open and use the device as a simple pulley. Choose the Petzl NANO TRAXION when minimum weight and compactness are the main priorities.

Further reading

Both third-party articles emphasize that the major practical difference is Micro’s lock-open cam versus Nano’s lower weight and smaller size:

• WildSnow: Small and Mighty — Petzl’s Nano Traxion
• Alpine Savvy: Petzl Traxion pulleys — Micro vs Nano
