DMM 12mm Steel Klettersteig Carabiner
The DMM 12 mm Steel Klettersteig is a high-volume professional connector with a wide gate opening. Its enlarged offset-D shape provides space and strength for bulky equipment, oversize items and gloved operation.
Key features
- The DMM 12 mm Steel Klettersteig is a high-volume professional connector with a wide gate opening.
- Its enlarged offset-D shape provides space and strength for bulky equipment, oversize items and gloved operation.
Official DMM technical specifications
| Product Name | Product Code | Dimensions | Weight | MBS (Major Axis) | MBS (Minor Axis) | MBS (Gate Open) | Gate Opening | Certification |
|---|---|---|---|---|---|---|---|---|

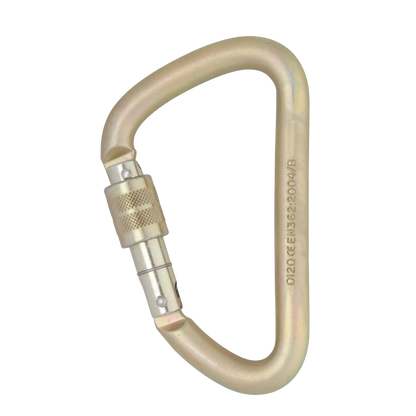

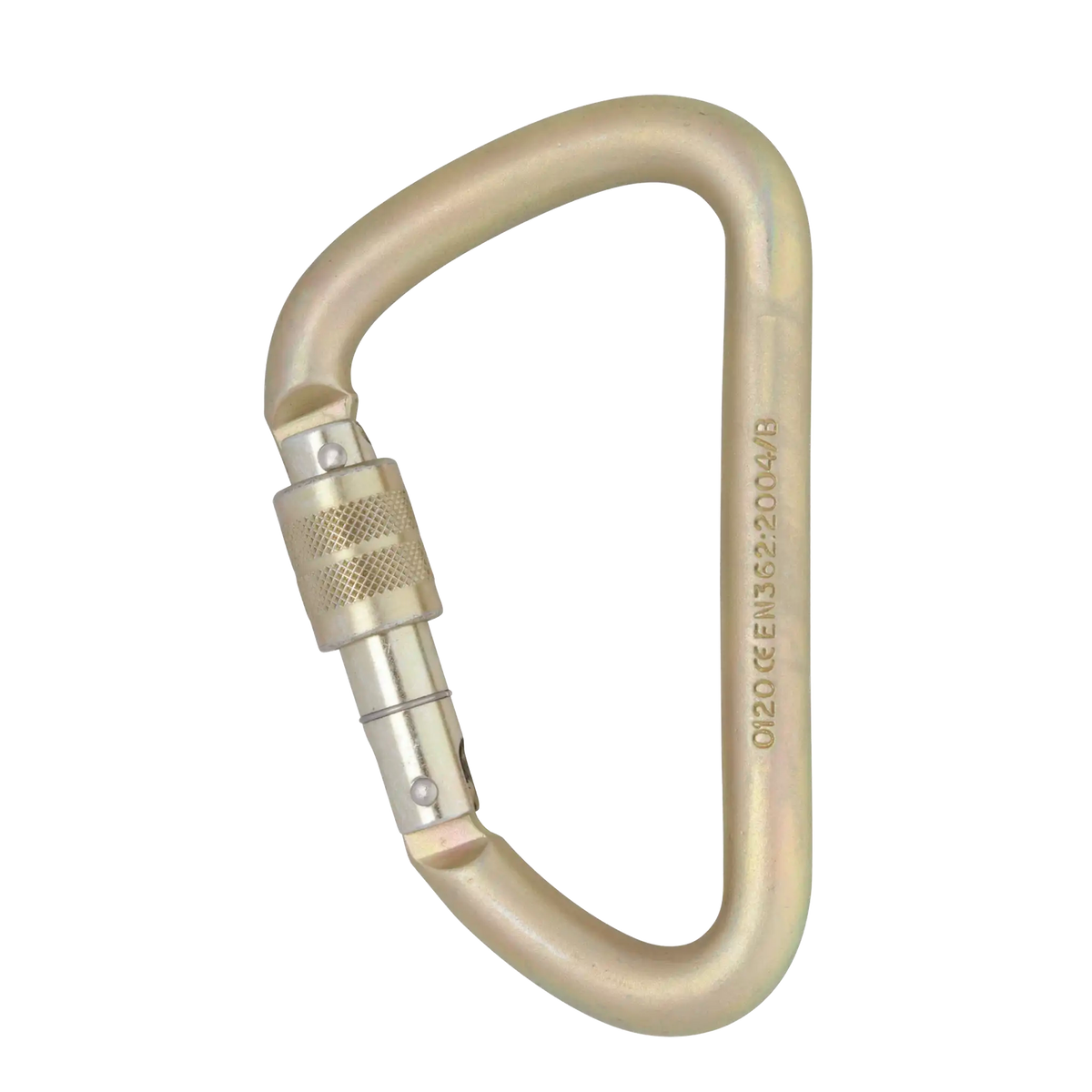

| 12mm Steel Klettersteig Screwgate | C842 | 76 x 126mm | 266g | 45kN | 12kN | 12kN | 24mm | EN362:2004 B EN12275:2013 B |

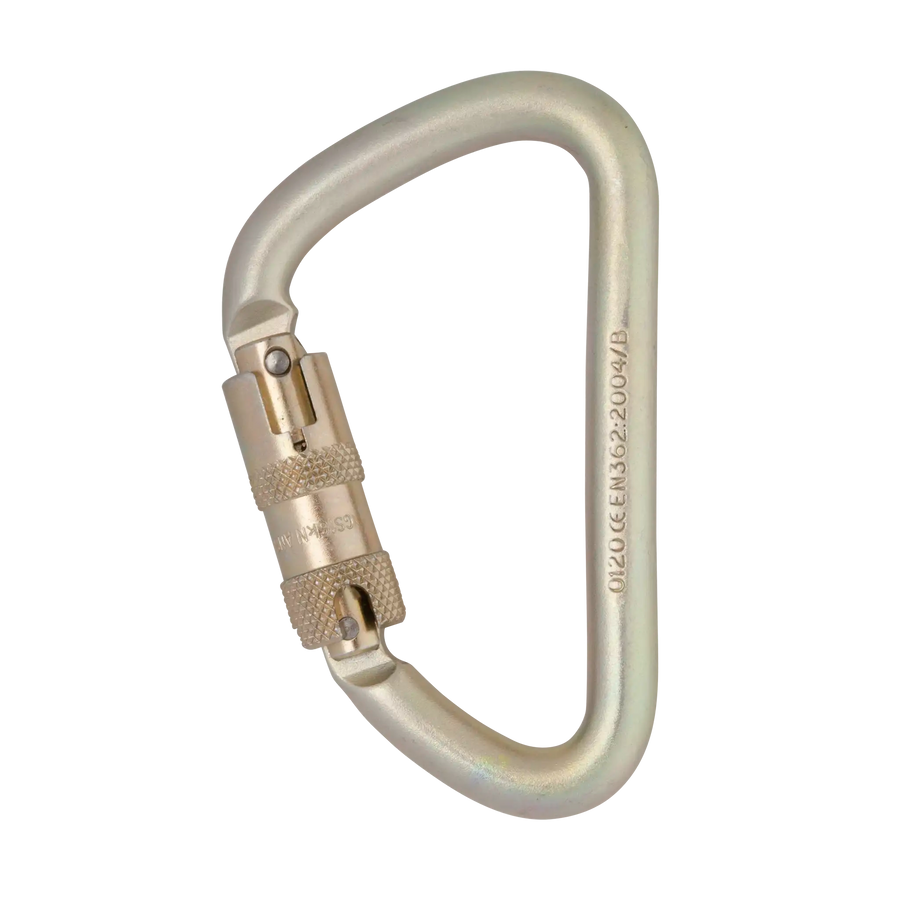

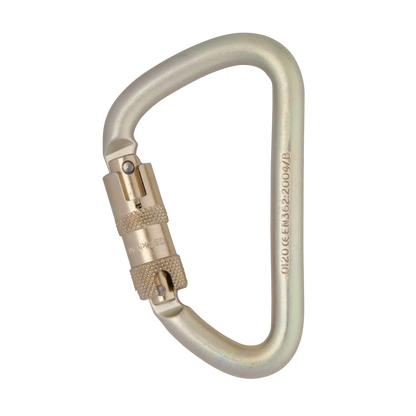

| 12mm Steel Klettersteig Kwiklock ANSI | C843ANSI | 76 x 126mm | 293g | 45kN | 16kN | 12kN | 23mm | EN362:2004 B/K EN12275:2013 B/K ANSI/ASSE Z359.12-2019 CAN/CSA Z259.12-16 |
DMM vs Petzl
Petzl VERTIGO TWIST-LOCK: Both provide large openings for professional systems and gloved handling. The DMM is a high-strength steel connector; the Vertigo Twist-Lock is designed around lanyard-end use and has a different locking mechanism and certification profile.
| Specification | DMM 12mm Steel Klettersteig Carabiner | Petzl VERTIGO TWIST-LOCK |
|---|---|---|
| Weight | 266g; 293g | 77 g |
| Major-axis strength | 45kN | 25 kN |
| Minor-axis strength | 12kN; 16kN | 10 kN |
| Open-gate strength | 12kN | 8 kN |
| Gate opening | 24mm; 23mm | 25 mm |
| Certification | EN362:2004 B EN12275:2013 B; EN362:2004 B/K EN12275:2013 B/K ANSI/ASSE Z359.12-2019 CAN/CSA Z259.12-16 | CE EN 362 B, CE EN 12275 B/K, GB/T 23469 B/K, XF 494:FZL-G-Q |
Comparison data is taken from the technical information published on the linked skimo.in Petzl product page. Check system compatibility and the manufacturer’s current instructions before use.
Source: official DMM product page. Description rewritten for skimo.in; technical values are reproduced only where DMM publishes them.
