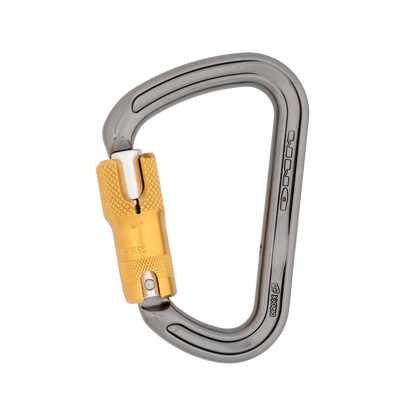

DMM Klettersteig ANSI Carabiner
DMM Klettersteig ANSI Carabiner
Regular price
Rs. 2,999.00
Regular price
Sale price
Rs. 2,999.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
DMM Klettersteig ANSI Carabiner
The DMM Klettersteig ANSI is a large locking carabiner for professional rope systems. A wide opening and long, flat basket suit webbing and complex rope paths, while the expanded D shape directs loads along the major axis.
Key features
- Klettersteig for size
- Keylock clean nose for snag free connection
- Easy to use with gloved hands
Official DMM technical specifications
| Product Name | Product Code | Dimensions | Weight | MBS (Major Axis) | MBS (Minor Axis) | MBS (Gate Open) | Gate Opening | Certification |
|---|---|---|---|---|---|---|---|---|

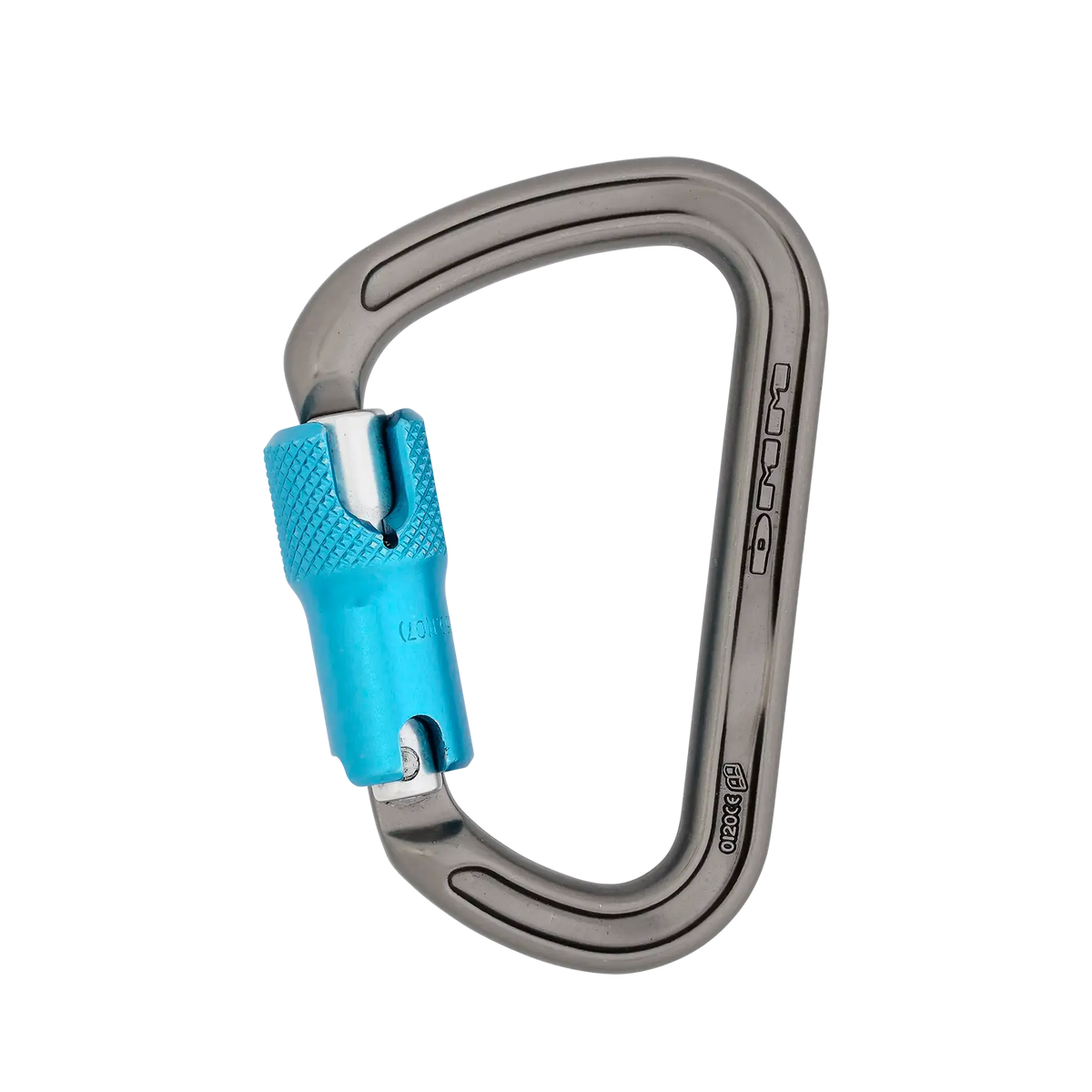

| Klettersteig Kwiklock ANSI | A843ANSI | 77 x 120mm | 107g | 30kN | 16kN | 10kN | 21mm | EN362:2004 B EN12275:2013 B/K ANSI/ASSE Z359.12-2019 CAN/CSA Z259.12-16 |

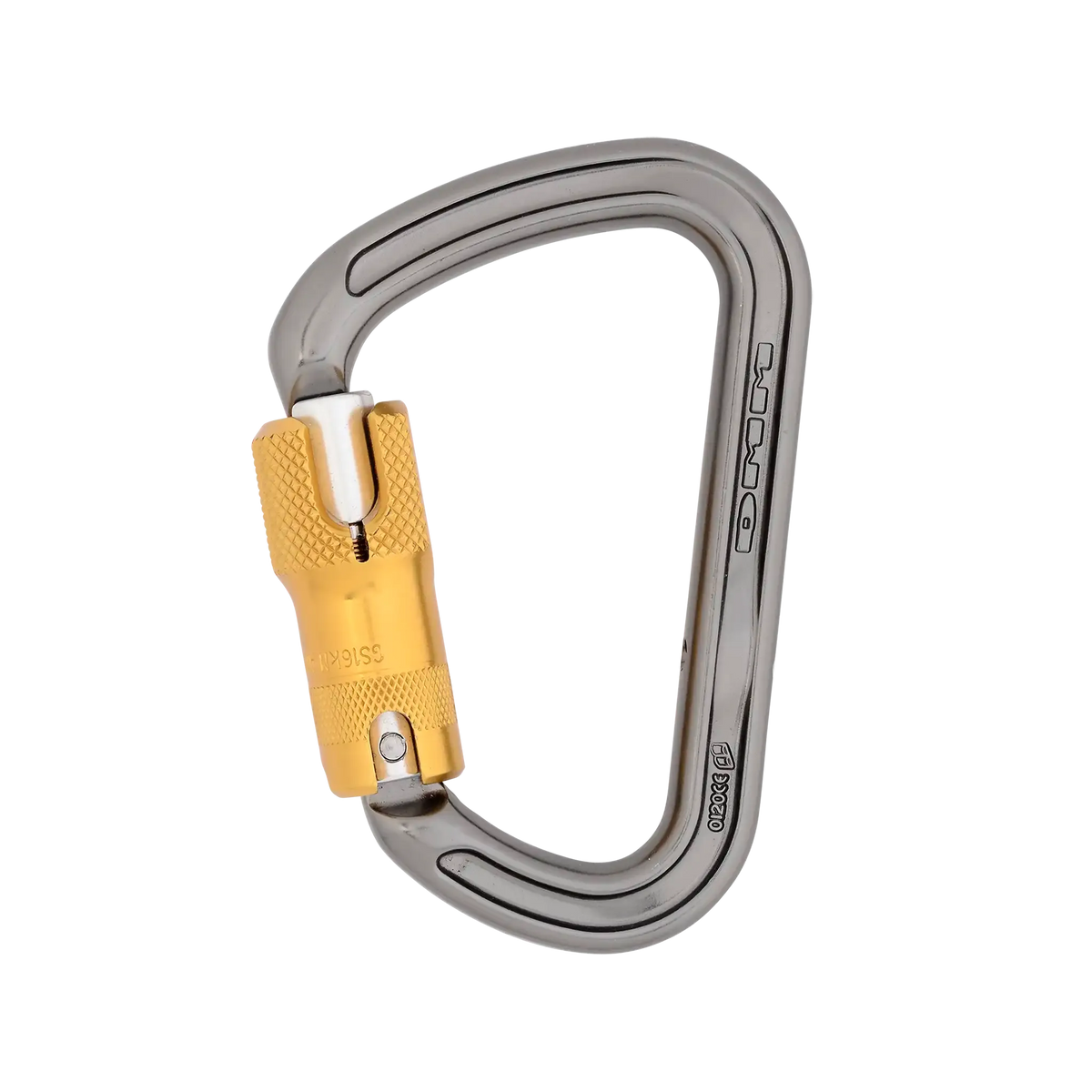

| Klettersteig Locksafe ANSI | A847ANSI | 77 x 120mm | 109g | 30kN | 16kN | 10kN | 21mm | EN362:2004 B EN12275:2013 B/K ANSI/ASSE Z359.12-2019 CAN/CSA Z259.12-16 |
DMM vs Petzl
Petzl VERTIGO TWIST-LOCK: Both are large automatic-locking connectors for professional lanyard and rope applications. Standards and gate systems differ, so verify the exact certification required by your system.
| Specification | DMM Klettersteig ANSI Carabiner | Petzl VERTIGO TWIST-LOCK |
|---|---|---|
| Weight | 107g; 109g | 77 g |
| Major-axis strength | 30kN | 25 kN |
| Minor-axis strength | 16kN | 10 kN |
| Open-gate strength | 10kN | 8 kN |
| Gate opening | 21mm | 25 mm |
| Certification | EN362:2004 B EN12275:2013 B/K ANSI/ASSE Z359.12-2019 CAN/CSA Z259.12-16 | CE EN 362 B, CE EN 12275 B/K, GB/T 23469 B/K, XF 494:FZL-G-Q |
