Petzl
Petzl Coeur Bolt Stainless (Pack of 20)
Petzl Coeur Bolt Stainless (Pack of 20)
Regular price
Rs. 16,900.00
Regular price
Sale price
Rs. 16,900.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Stainless steel anchor for typical exterior use

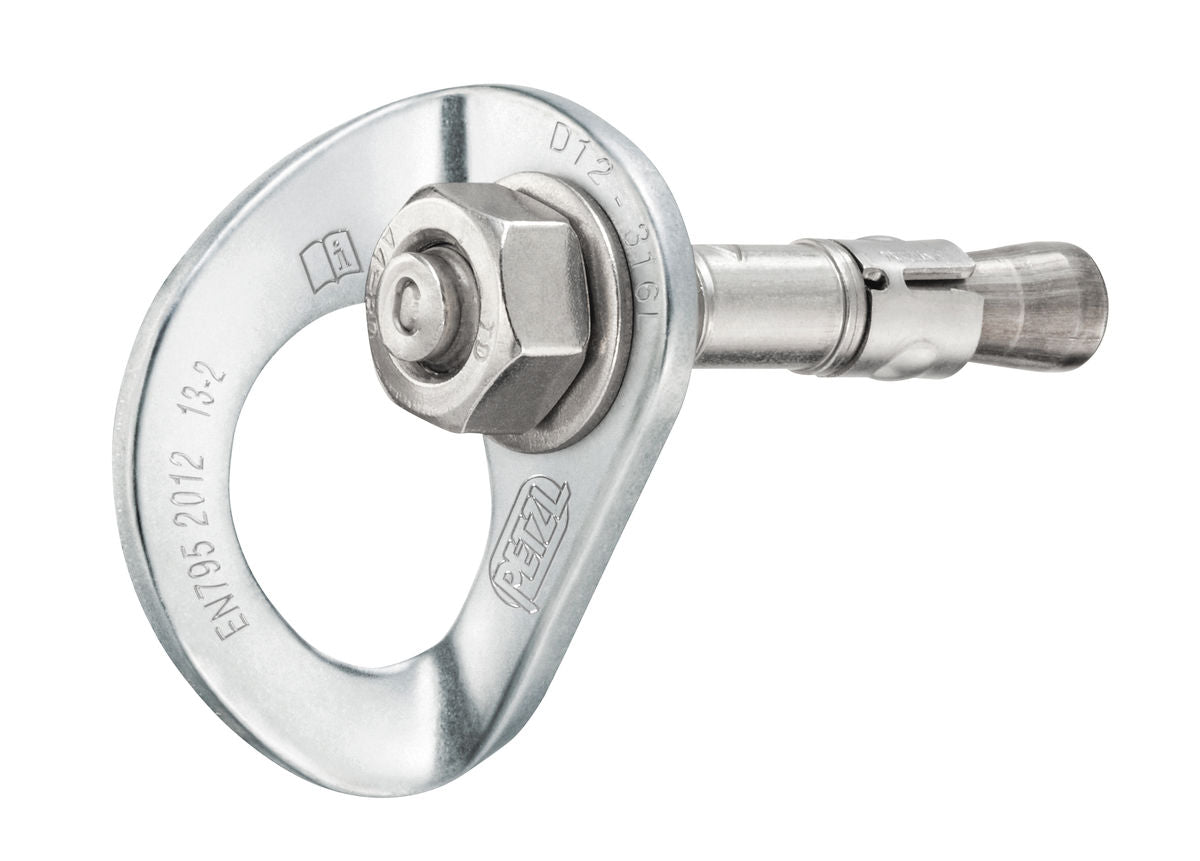

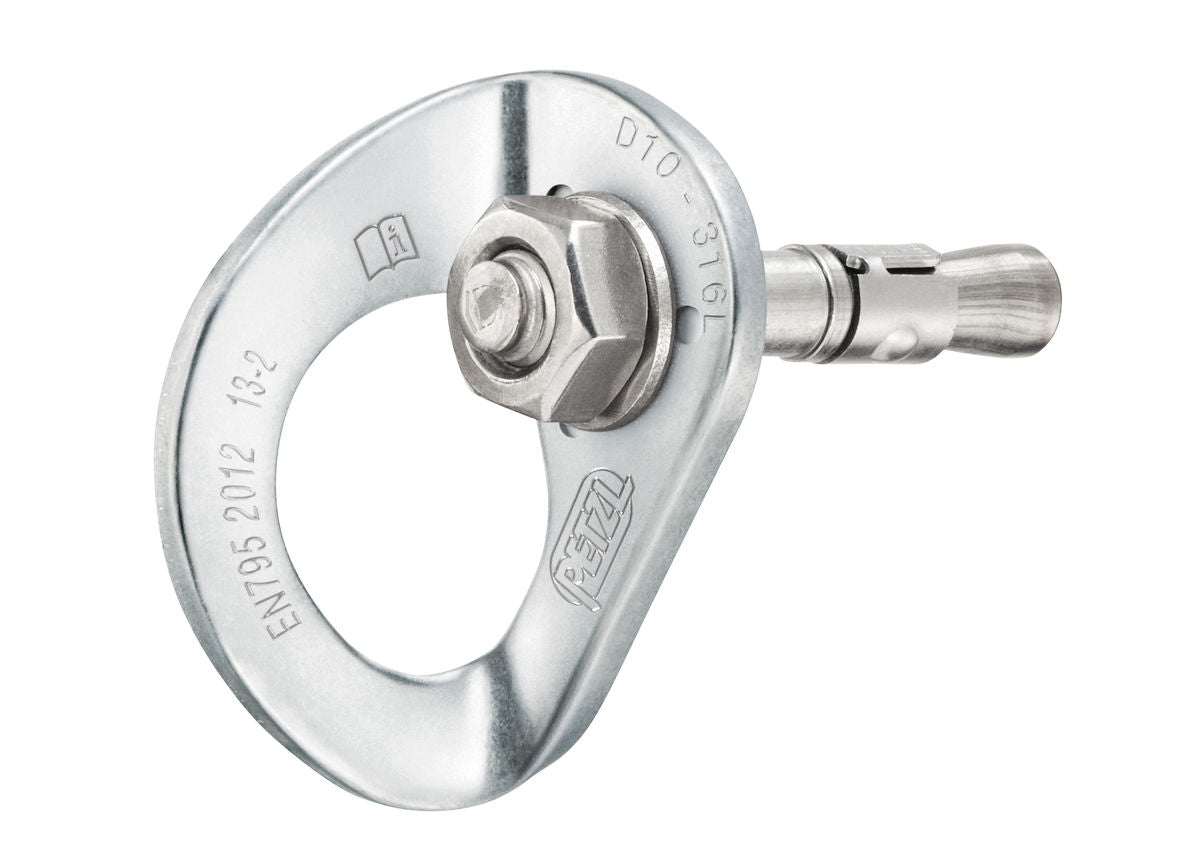

Stainless steel anchor composed of a COEUR STAINLESS hanger, a bolt, and a nut, and is designed for typical exterior use. It is available in 10 and 12 mm diameters.
Detailed description
Description
- Complete and durable assembly:
- comprised of a COEUR STAINLESS hanger, nut and bolt
- 316L stainless steel offers excellent resistance to corrosion in typical exterior environments
- hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
- Easy to clip:

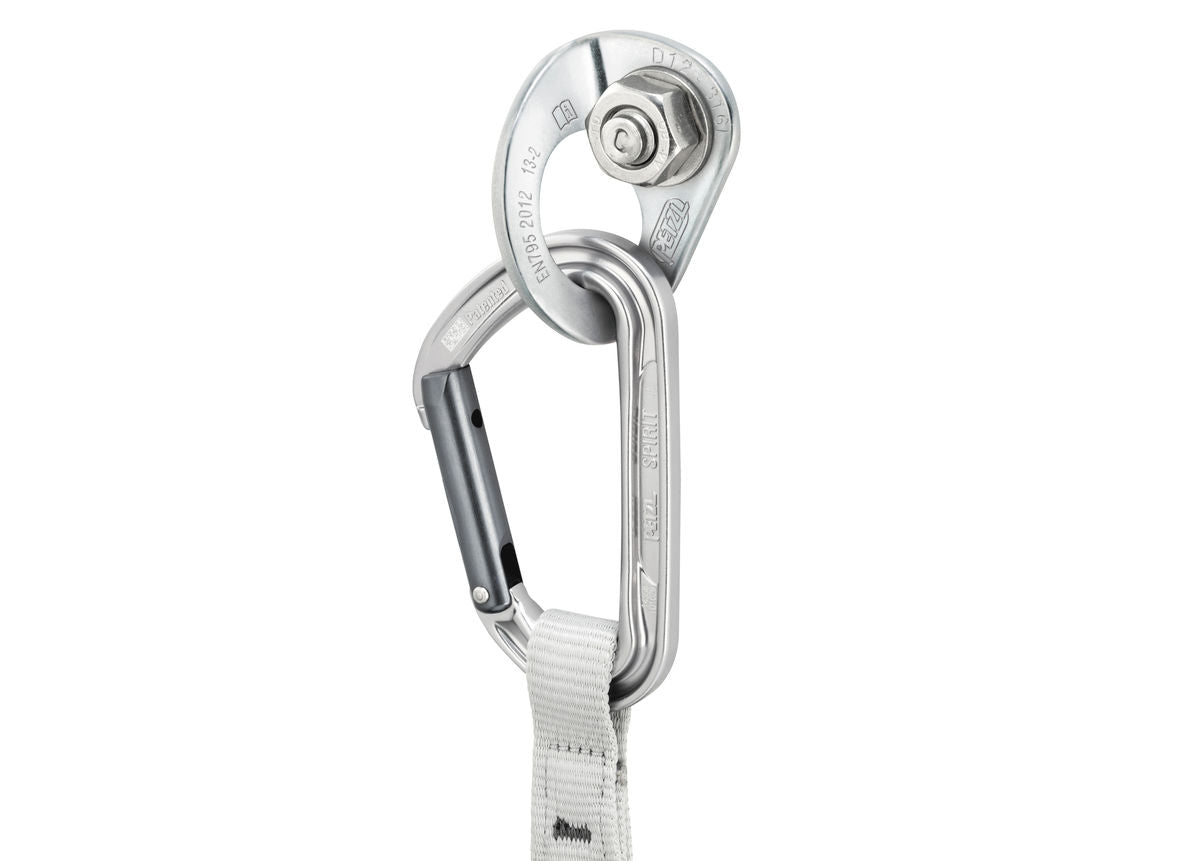

- the wide, ergonomic connection point facilitates carabiner clipping
- the width of the attachment point allows installation of two carabiners at the same time
- Reduces wear on carabiners: the thickness of the hanger and the rounded edges of the connection point minimize wear on carabiners
- Available in two bolt sizes (10 or 12 mm)
Specifications
- Material(s): 316L stainless steel
- Certification(s): EN 959
References
| References | P36BS 10 | P36BS 12 |
|---|---|---|
| Diameter | 10 mm | 12 mm |
| Weight | 110 g | 135 g |
| Drilling diameter | 10 mm | 12 mm |
| Total bolt length | 70 mm | 85 mm |
| Shear strength in 50 MPa concrete | 25 kN | 25 kN |
| Pull-out strength in concrete 50 MPa | 15 kN | 18 kN |
| Guarantee | 3 years | 3 years |
| Inner Pack Count | 1 | 1 |
