Petzl Coeur Bolt Steel Anchors (Pack of 20)

Petzl Coeur Bolt Steel Anchors (Pack of 20)

Regular price Rs. 7,400.00
Regular price Sale price Rs. 7,400.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Size

Standard steel anchor for interior use or non-permanent installations

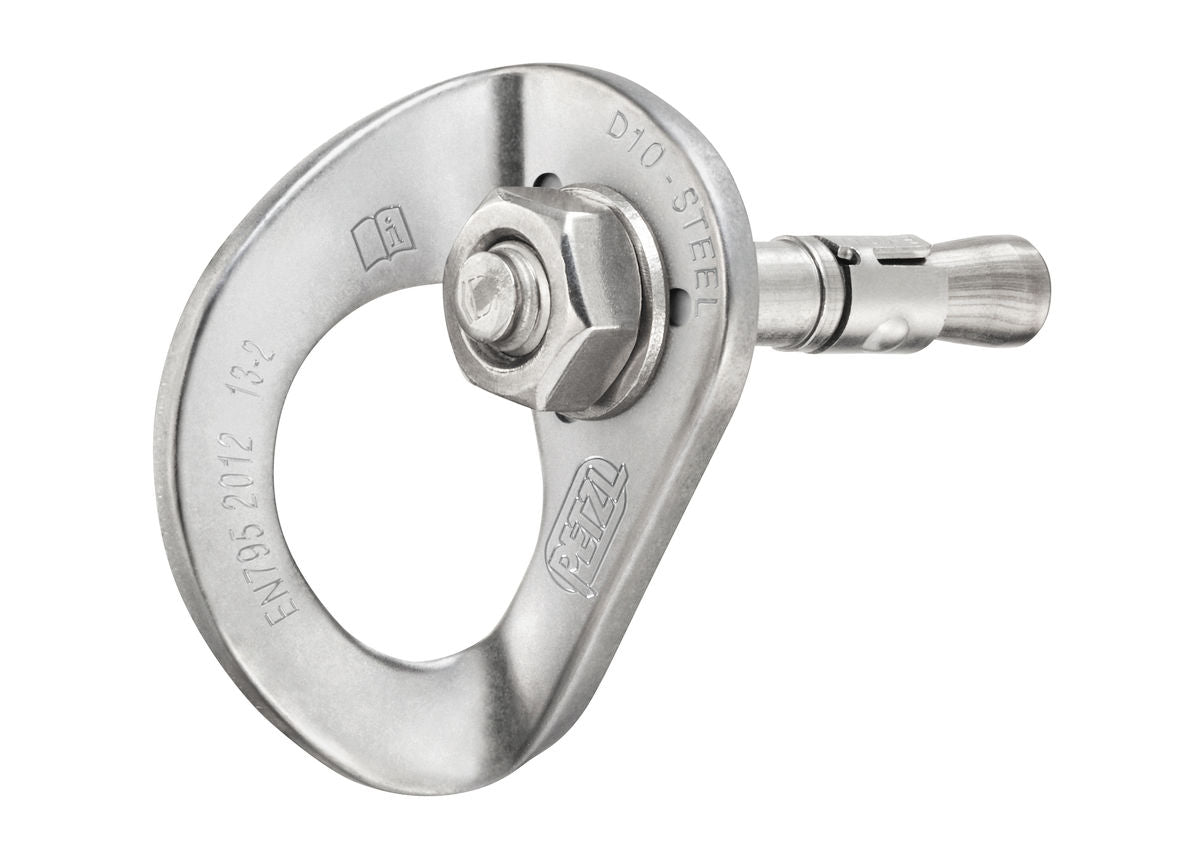

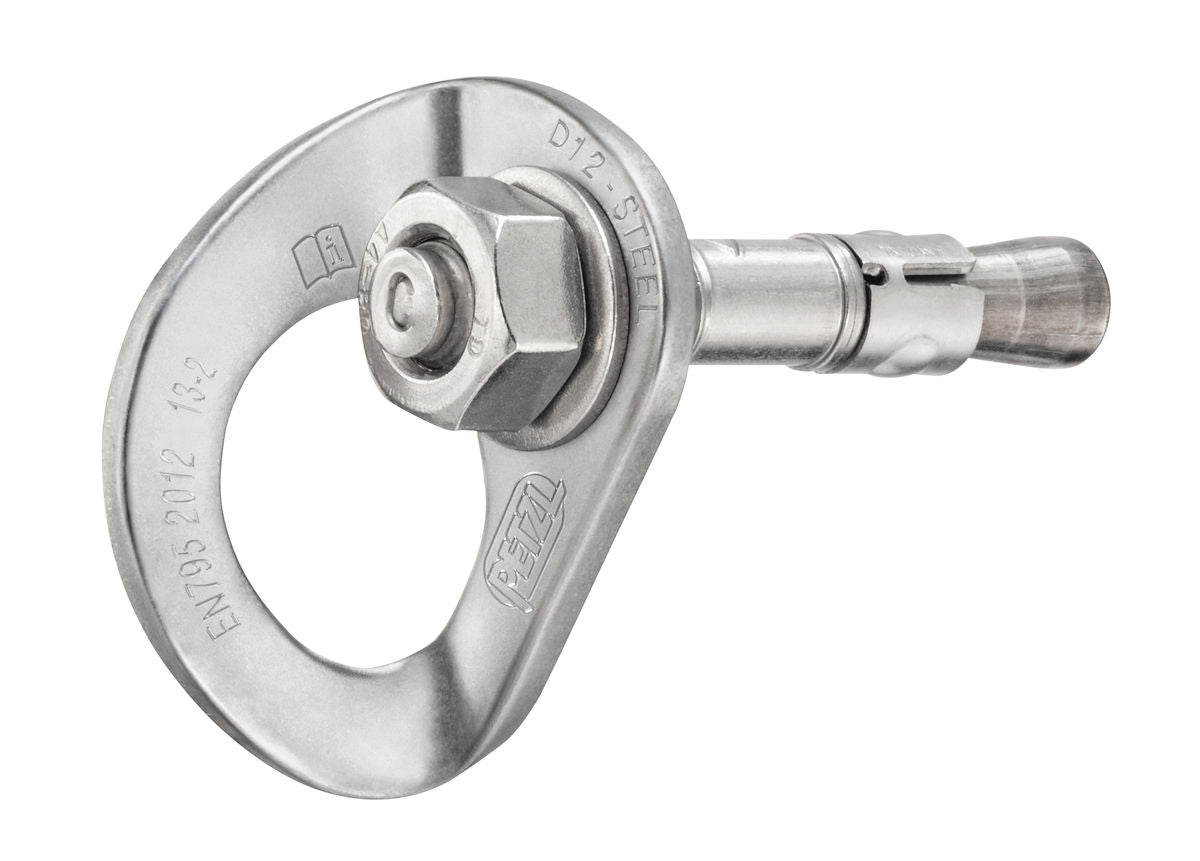

The COEUR BOLT STEEL is a standard steel anchor made up of a COEUR STEEL hanger, a bolt, and a nut. It is designed for interior use or non-permanent installations. It is available in 10 and 12 mm diameters.

Detailed description

Description

  • Economical choice for low-corrosion environments
  • Assembly composed of a COEUR STEEL hanger, a bolt, and a nut
  • Easy to clip:

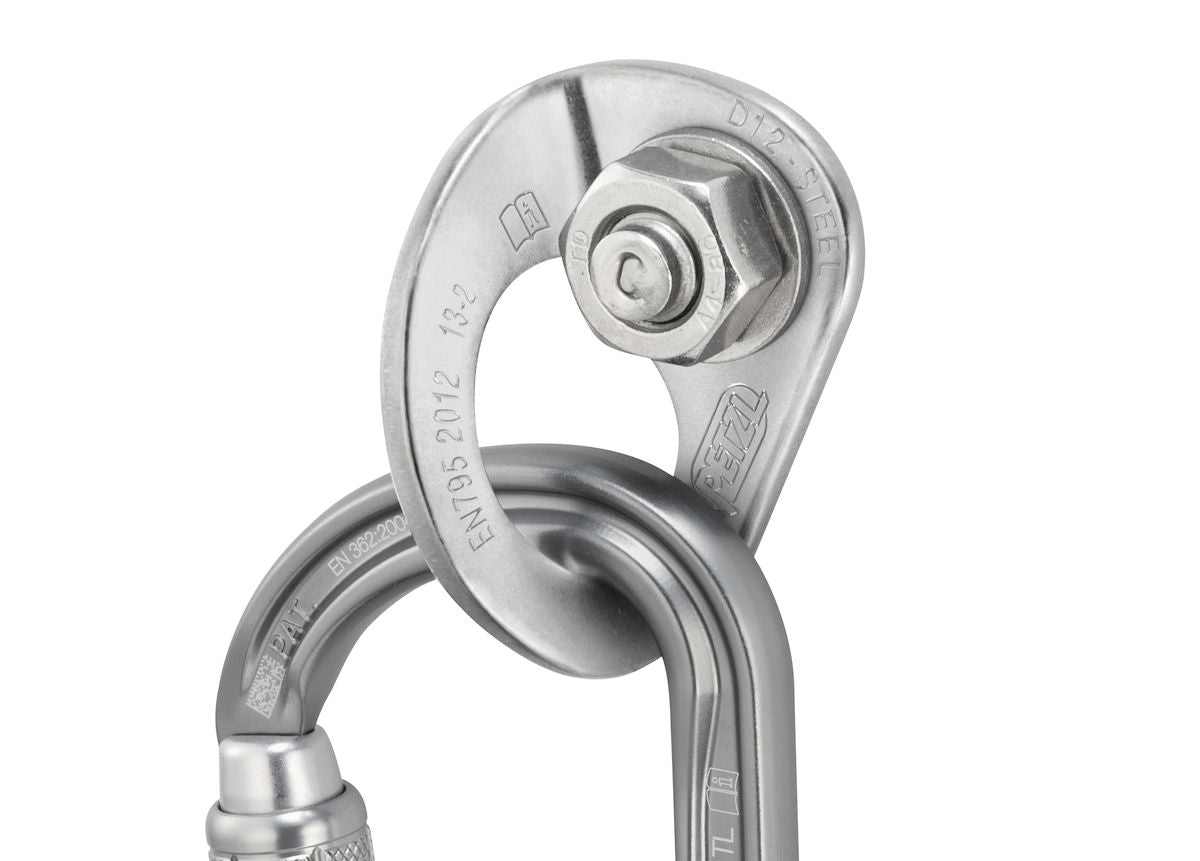

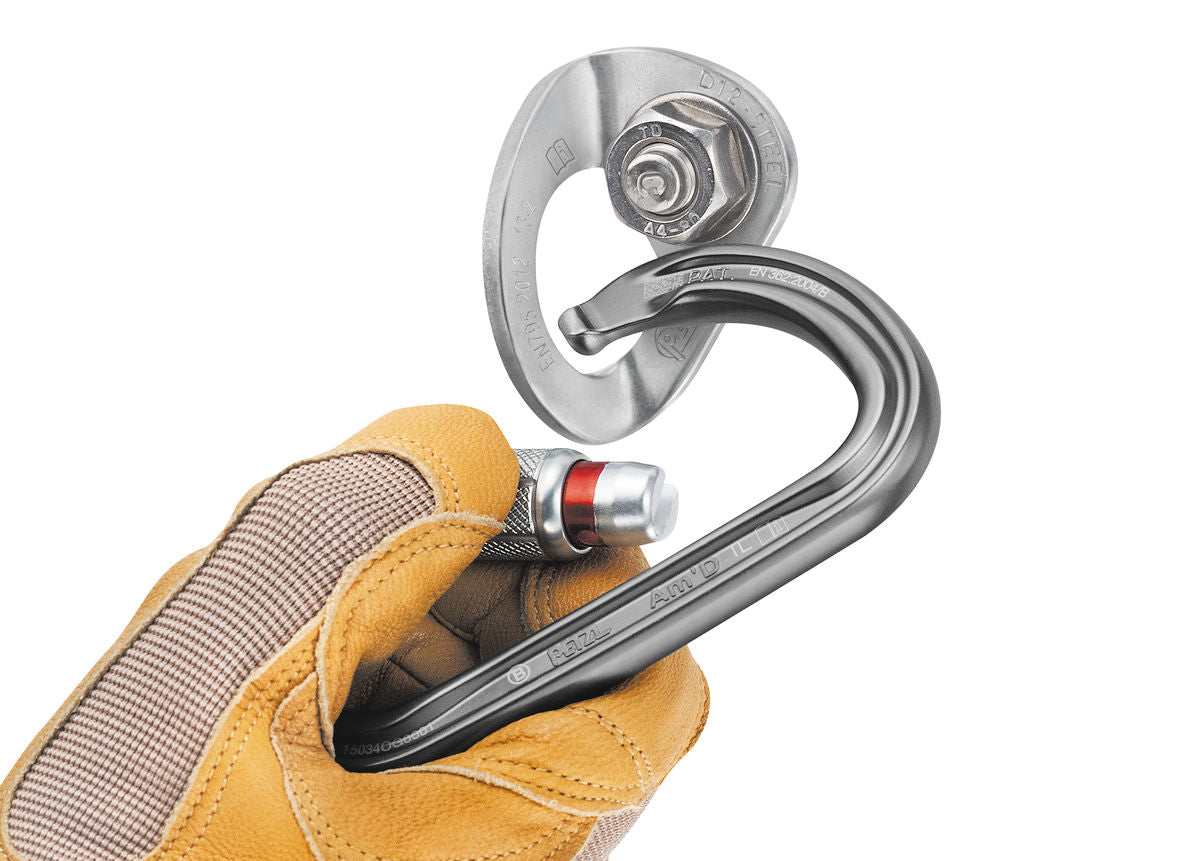

    - the wide, ergonomic connection point facilitates carabiner clipping
    - the width of the attachment point allows installation of two carabiners at the same time
  • Reduces wear on connectors: the thickness of the hanger and the rounded edges of the connection point minimize wear on connectors
  • Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
  • Available in two bolt sizes (10 or 12 mm)
  • COEUR STEEL hangers, available separately:
    - for 10 mm diameter bolt (P36AA 10)
    - for 12 mm diameter bolt (P36AA 12)

Specifications

  • Material(s): steel
  • Certification(s): EN 959

References

References P36BA 10 P36BA 12
Diameter 10 mm 12 mm
Weight 110 g 135 g
Drilling diameter 10 mm 12 mm
Total bolt length 85 mm 105 mm
Shear strength in 50 MPa concrete 23 kN 25 kN
Pull-out strength in concrete 50 MPa 15 kN 18 kN
Guarantee 3 years 3 years
Inner Pack Count 1 1
