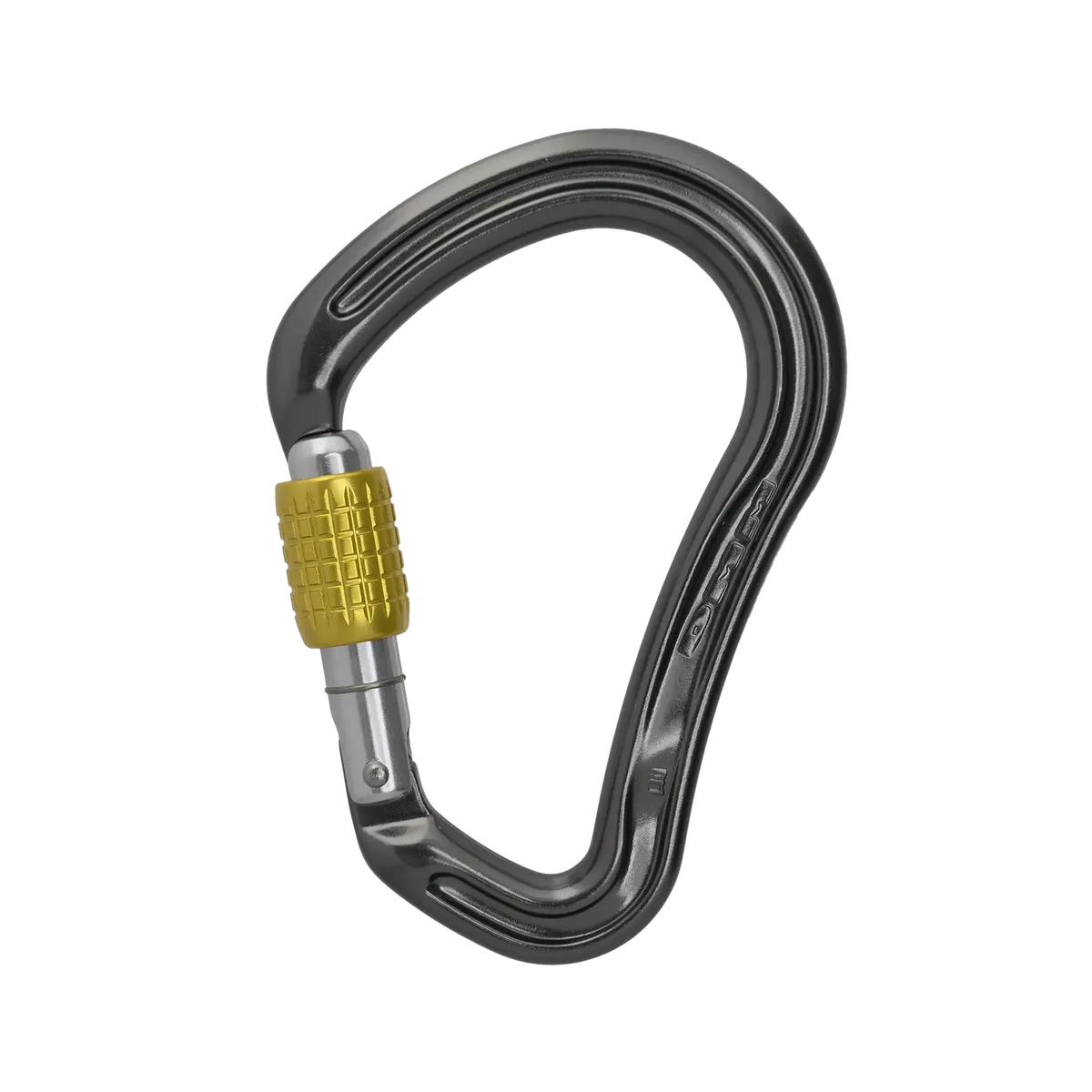

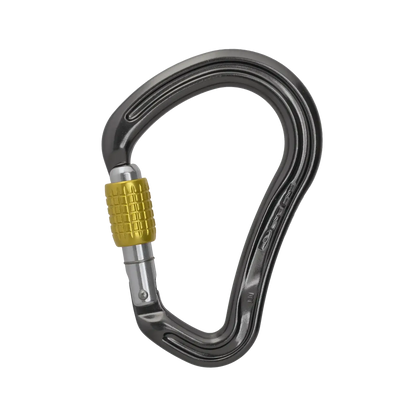

• DMM 30 KN Boa HMS Carabiner - Screwgate

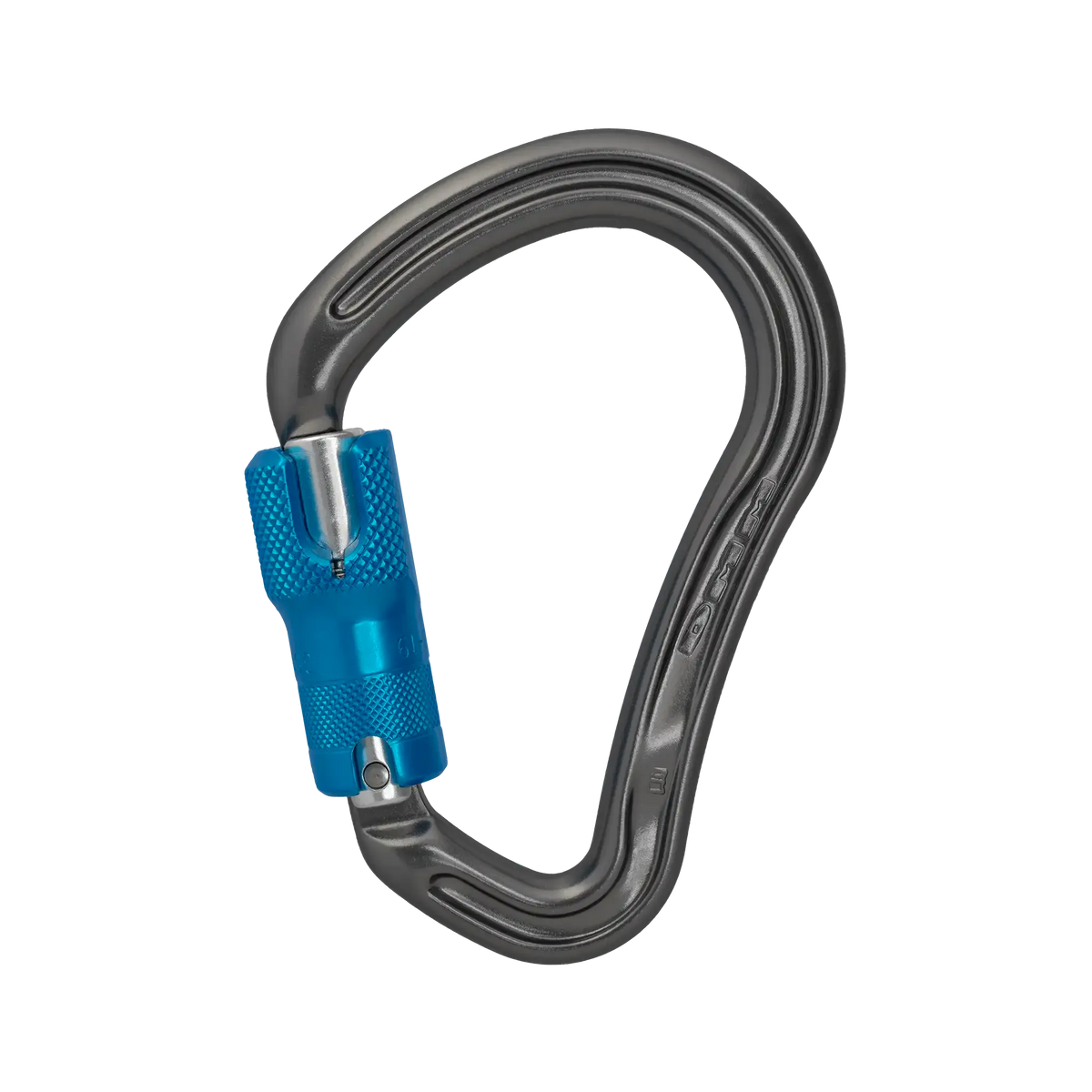

  • DMM 30 KN Boa HMS Carabiner - Kwiklock ANSI

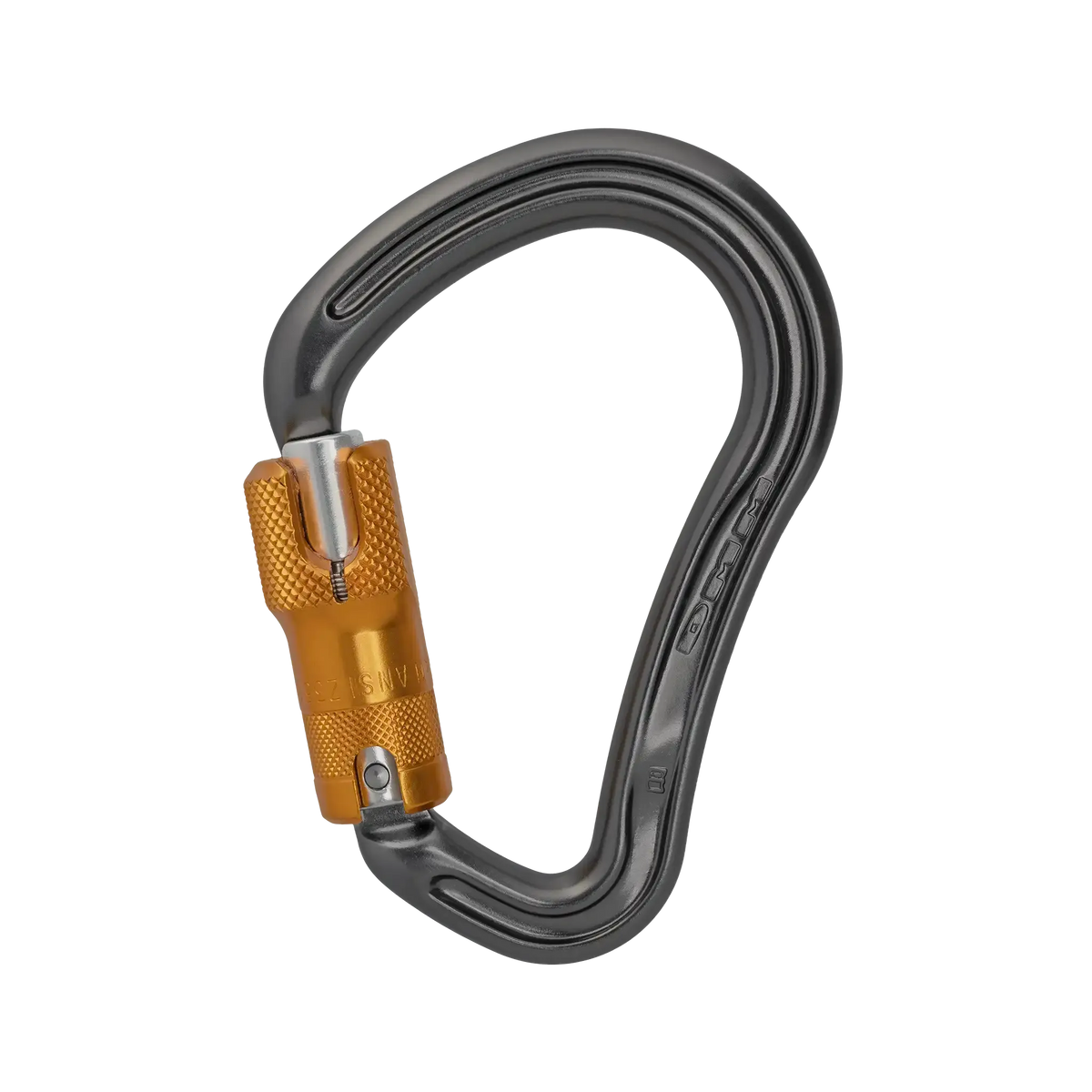

  • DMM 30 KN Boa HMS Carabiner - Locksafe ANSI

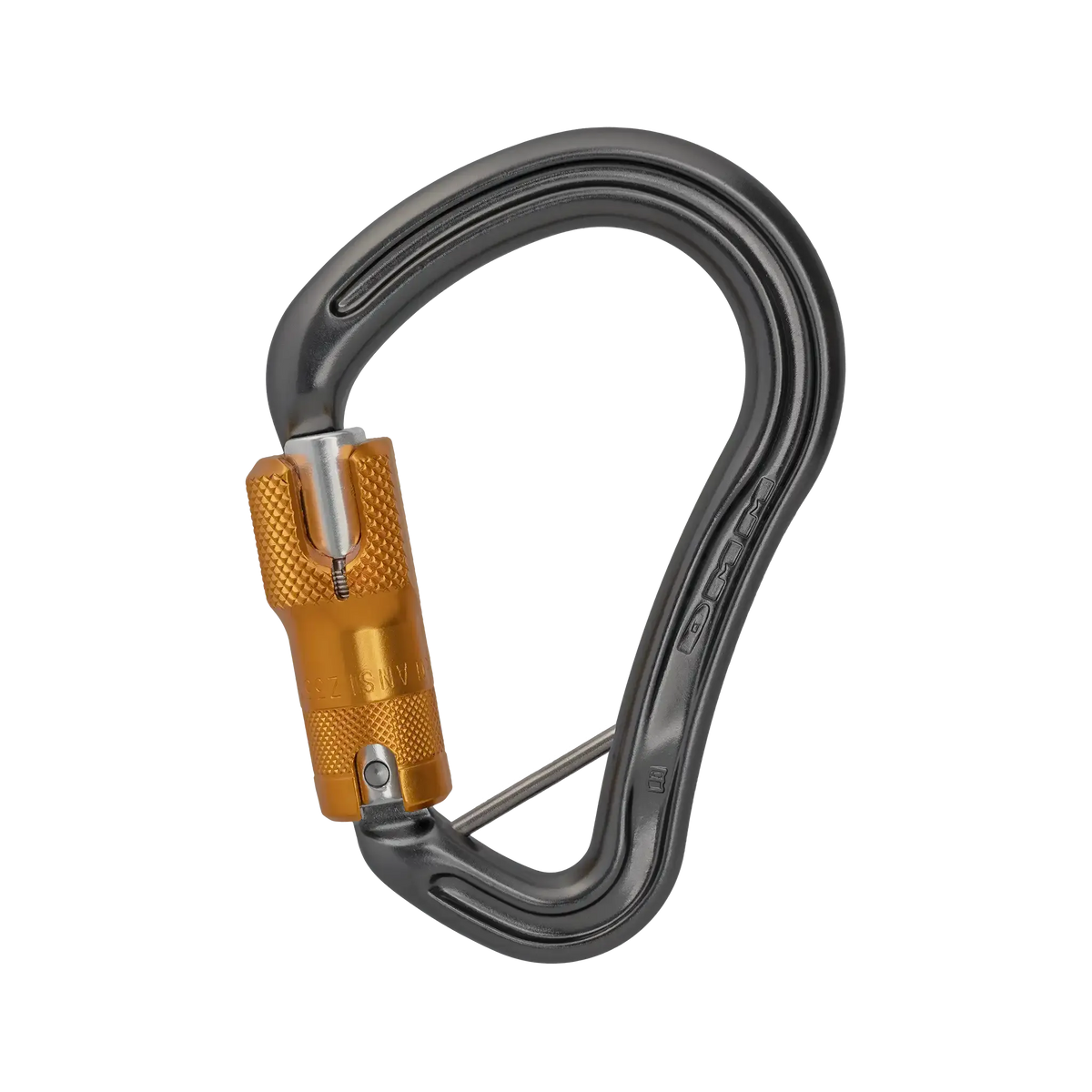

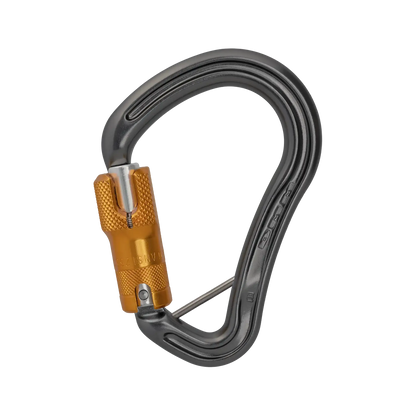

  • DMM 30 KN Boa HMS Carabiner - Locksafe ANSI w/ Captive Bar
1 4

DMM

DMM 30 KN Boa HMS Carabiner

DMM 30 KN Boa HMS Carabiner

Rs. 2,499.00
Rs. 2,499.00
Tax included. Shipping calculated at checkout.
Gate Type

DMM 30 KN Boa HMS Carabiner

The DMM Boa HMS is a large aluminium locking carabiner rated to 30 kN on the major axis for rescue-oriented loads. Its broad basket accommodates busy rigging systems, while the size remains easy to handle with substantial gloves.

Key features

  • The DMM Boa HMS is a large aluminium locking carabiner rated to 30 kN on the major axis for rescue-oriented loads.
  • Its broad basket accommodates busy rigging systems, while the size remains easy to handle with substantial gloves.

Official DMM technical specifications

Product Name Product Code Dimensions Weight MBS (Major Axis) MBS (Minor Axis) MBS (Gate Open) Gate Opening Certification
Boa HMS Screwgate Titanium A902 83 x 122mm 95g 30kN 12kN 9kN 24mm EN362:2004 B EN12275:2013 B/H UIAA121:2009
Boa HMS Kwiklock ANSI Titanium A903ANSI 83 x 122mm 115g 30kN 16kN 9kN 19mm EN362:2004 B EN12275:2013 B/H ANSI/ASSE Z359.12-2019 CAN/CSA Z259.12-16
Boa HMS Locksafe ANSI Titanium A907ANSI 83 x 122mm 115g 30kN 16kN 9kN 19mm EN362:2004 B EN12275:2013 B/H ANSI/ASSE Z359.12-2019 CAN/CSA Z259.12-16
Boa HMS Locksafe ANSI Captive Bar Titanium A907CBANSI 83 x 122mm 115g 30kN 16kN 9kN 19mm EN362:2004 B/T EN12275:2013 B/H/T ANSI/ASSE Z359.12-2019 CAN/CSA Z259.12-16

DMM vs Petzl

Petzl Am'D: Both are large locking connectors for technical systems. The Boa offers a very broad HMS basket and 30 kN major-axis rating; the Am'D uses an asymmetrical D shape for positioning devices along its major axis.

Specification DMM 30 KN Boa HMS Carabiner Petzl Am'D
Weight 95g; 115g 70 g
Major-axis strength 30kN 27 kN
Minor-axis strength 12kN; 16kN 8 kN
Open-gate strength 9kN 7 kN
Gate opening 24mm; 19mm 25 mm
Certification EN362:2004 B EN12275:2013 B/H UIAA121:2009; EN362:2004 B EN12275:2013 B/H ANSI/ASSE Z359.12-2019 CAN/CSA Z259.12-16; EN362:2004 B/T EN12275:2013 B/H/T ANSI/ASSE Z359.12-2019 CAN/CSA Z259.12-16 CE EN 12275, UIAA, CE EN 362, EAC, NFPA 2500 Technical Use, XF 949: FZL-G-Q, GB/T 23469 / B / K
