Petzl FIXE Pulley
Petzl FIXE Pulley
Couldn't load pickup availability
Petzl FIXE Pulley

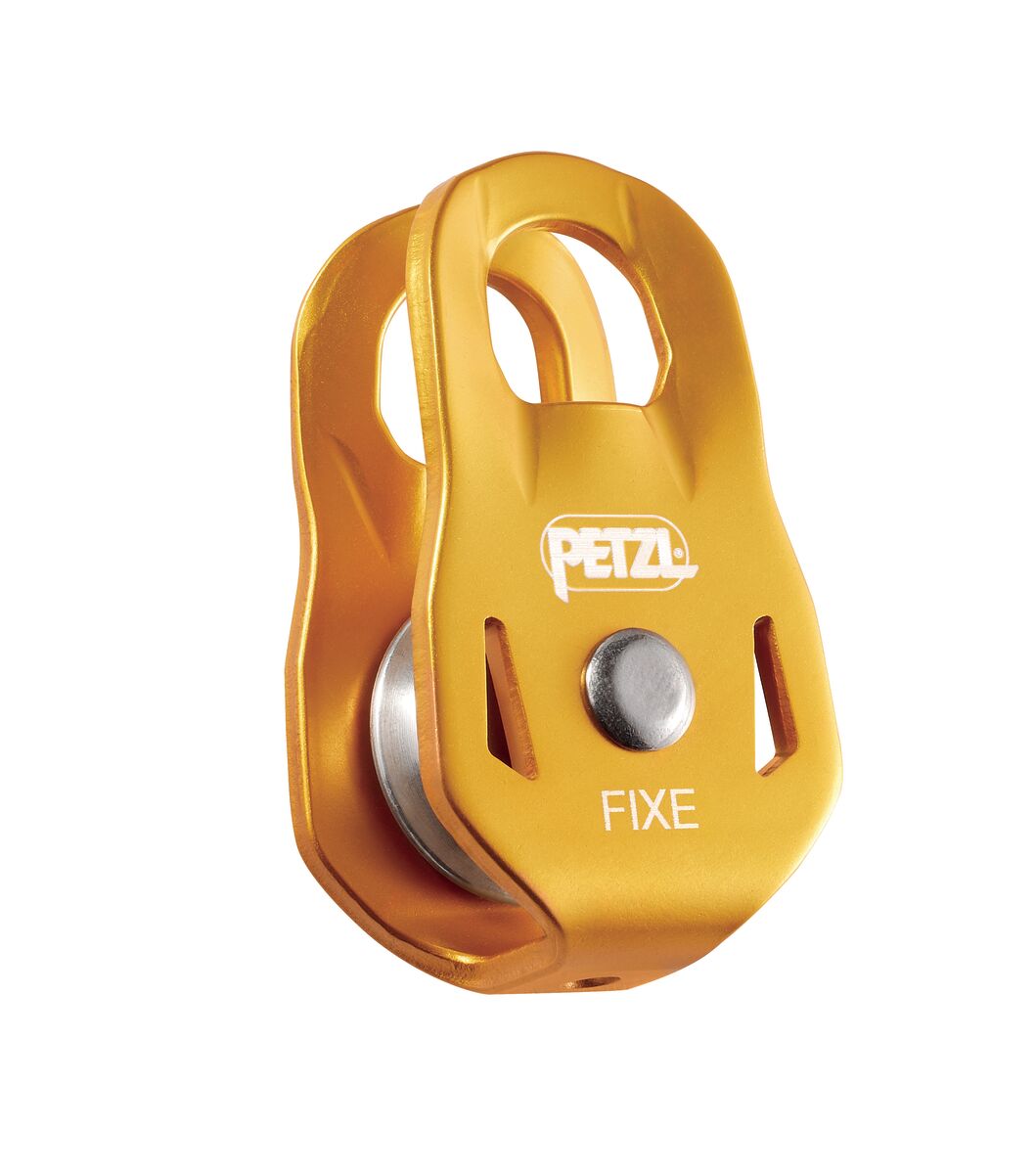

The Petzl FIXE is a lightweight, compact pulley with fixed side plates, designed for haul systems and load deviations. Its fixed side plates allow quick rope installation and easy coupling with a rope clamp.

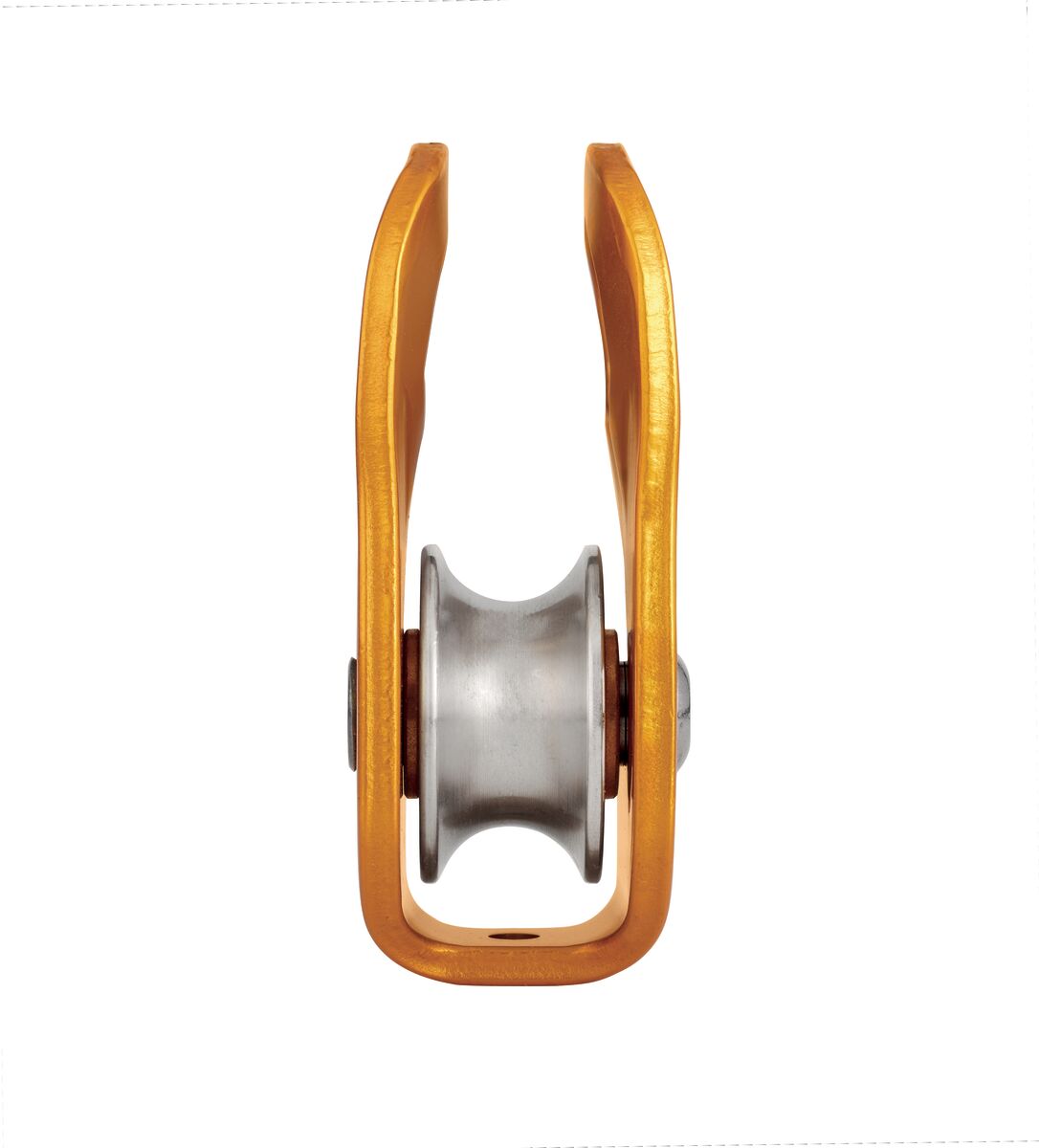

The sheave runs on self-lubricating bushings, balancing low weight with practical hauling performance.
Detailed product use cases
- Haul systems: Use FIXE as a compact pulley where a fixed-side-plate design suits the planned rope system.
- Load deviations: Redirect a hauling line where the system requires a compact pulley rated for the intended load.
- Rope-clamp coupling: The fixed side plates make it straightforward to pair FIXE with a compatible rope clamp.
- Lightweight equipment kits: At 98 g, FIXE suits systems where reducing carried weight matters.
Users must be trained and competent, verify compatibility across the complete system, and follow the Petzl technical notice before use.

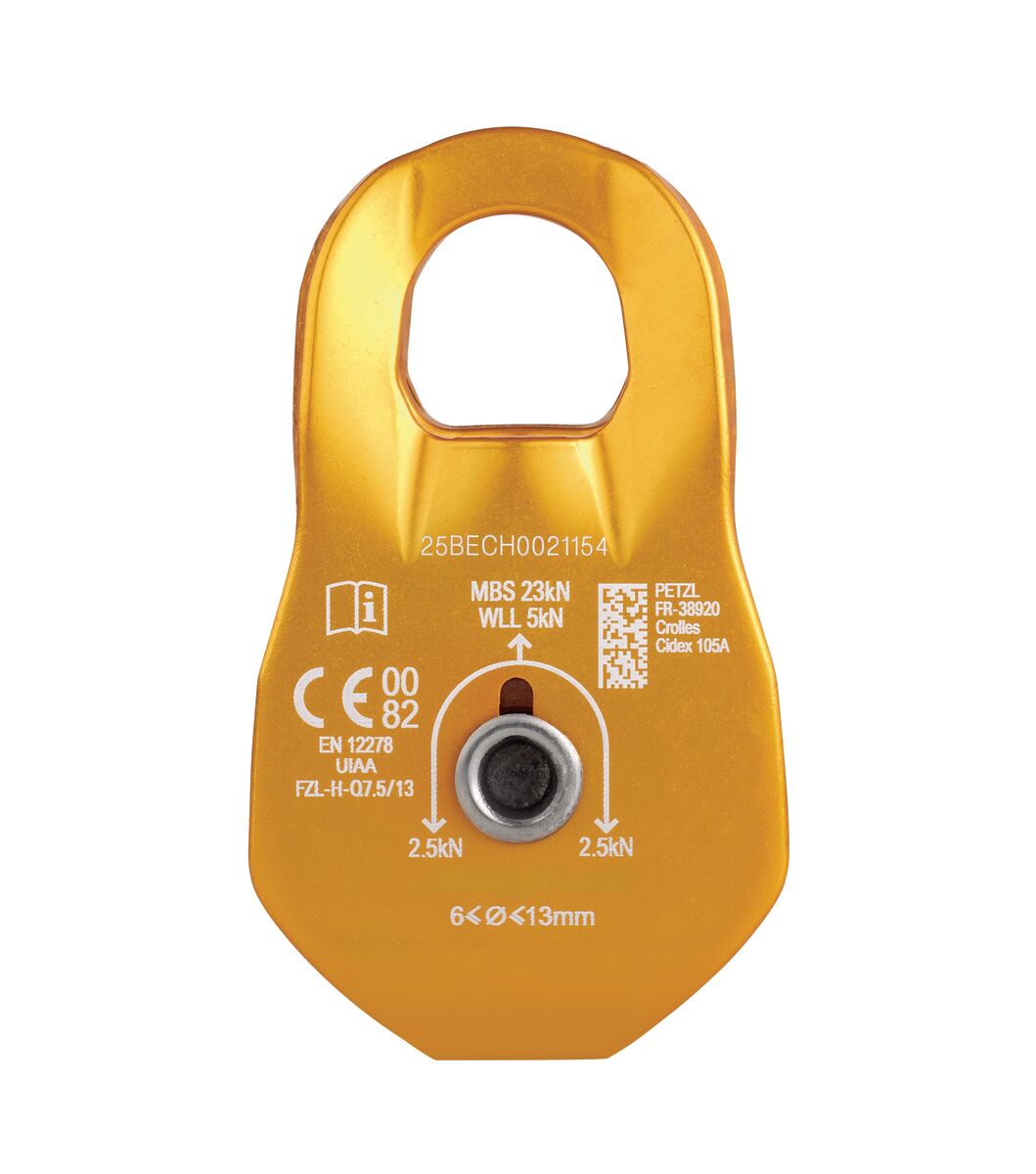

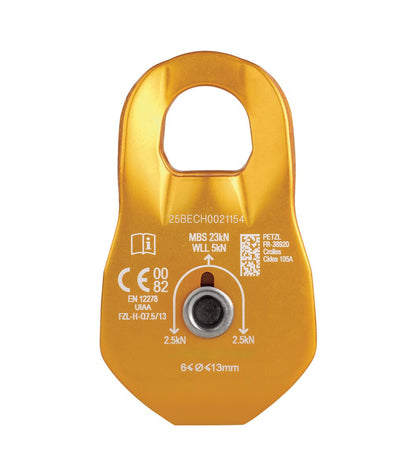

Key specifications
- Reference: P006AA00
- Colour: Yellow
- Weight: 98 g
- Rope compatibility: 6–13 mm
- Sheave diameter: 21 mm
- Efficiency: 71%
- Ball bearings: No
- Maximum working load: 5 kN
- Breaking strength: 23 kN
- Materials: Aluminium and stainless steel
- Certifications: CE EN 12278, UIAA, and XF 494 Light
- Manufacturer guarantee: 3 years
Which Petzl pulley suits your system?
| Product | Primary application | Efficiency | Key distinction |
|---|---|---|---|
| FIXE | Haul systems and load deviations | 71% | Fixed side plates and self-lubricating bushings |
| MICRO TRAXION | Progress capture and hauling | 91% | Lockable toothed cam and sealed ball bearings |
| TANDEM | Tyrolean traverses on rope | 71% | Double pulley accepting up to three carabiners |
| TANDEM SPEED | Faster, lower-angle Tyrolean traverses | — | Stainless-steel sheaves on sealed ball bearings |
Selection guidance
Choose FIXE when you need a compact fixed-side-plate pulley for hauling or redirecting loads. Choose MICRO TRAXION when the system specifically requires progress capture. TANDEM and TANDEM SPEED are intended for rope-traverse travel and are not direct substitutes for a hauling pulley.
