Petzl NANO TRAXION

Petzl NANO TRAXION

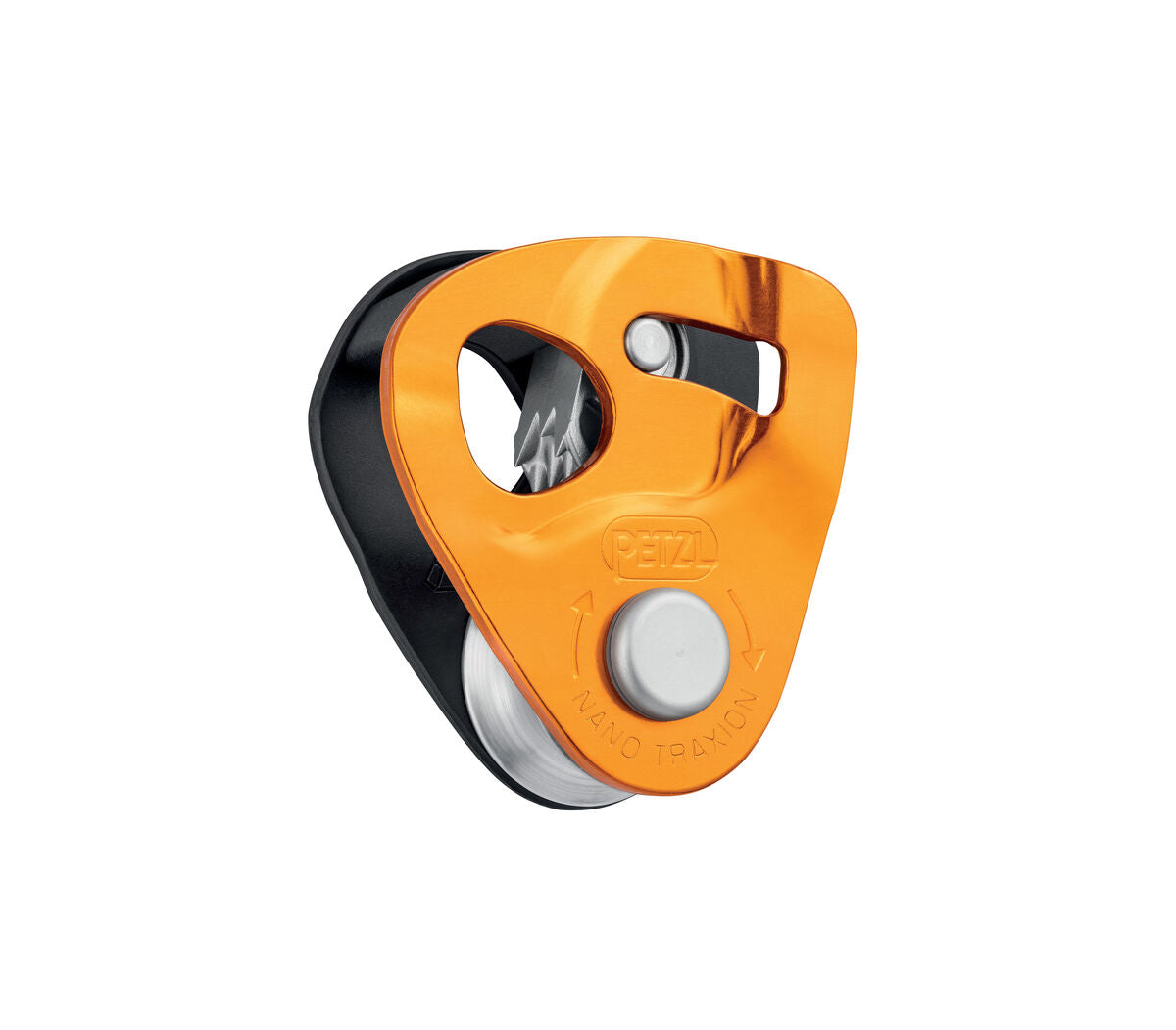

The Petzl NANO TRAXION is an ultra-lightweight, compact progress-capture pulley designed for rescue systems. At only 53 g, it combines a toothed progress-capture cam with a high-efficiency sheave running on sealed ball bearings.

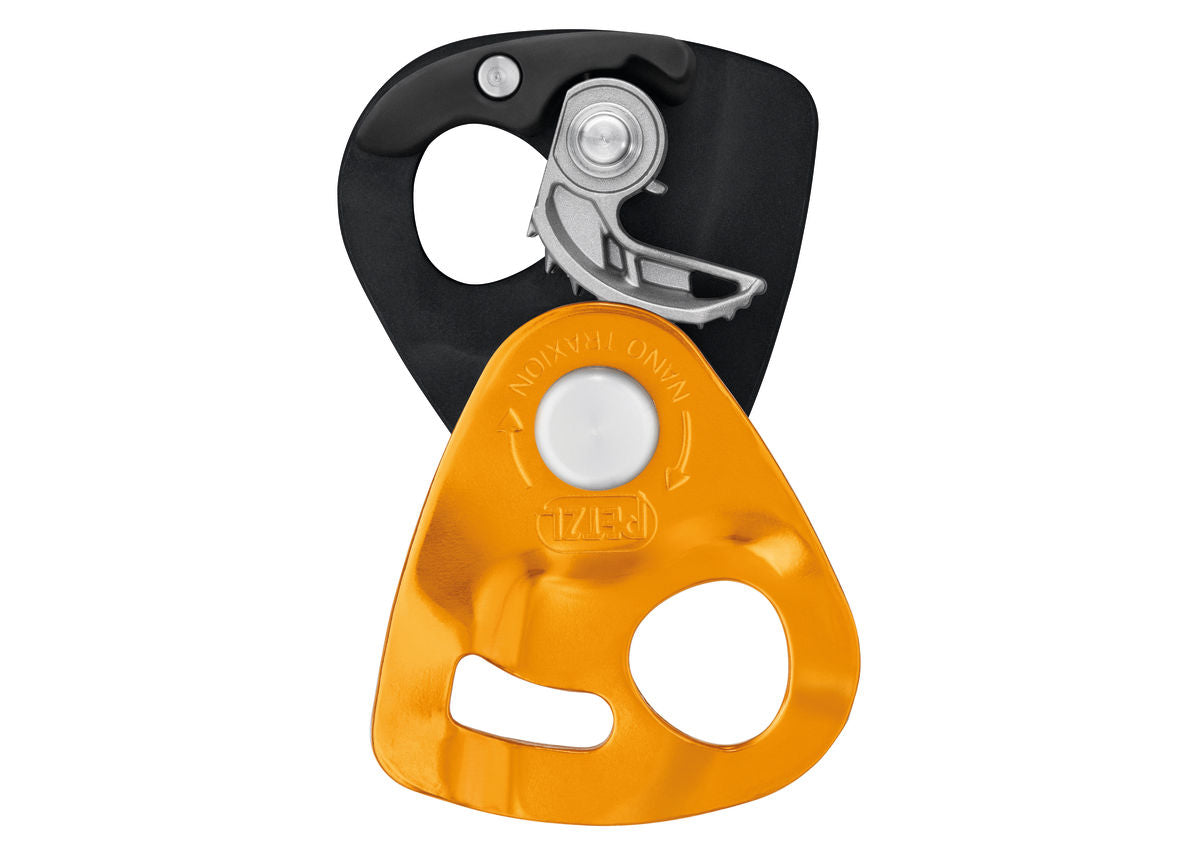

It delivers 91% efficiency and works on frozen or muddy ropes. Rope-installation diagrams are engraved inside the pulley for reference during setup.

Detailed product use cases

• Rescue hauling systems where low equipment weight matters
• Progress capture on compatible 7–11 mm ropes
• Compact emergency or technical-rescue kits
• Pack hauling with compatible cord, subject to Petzl’s stated restrictions

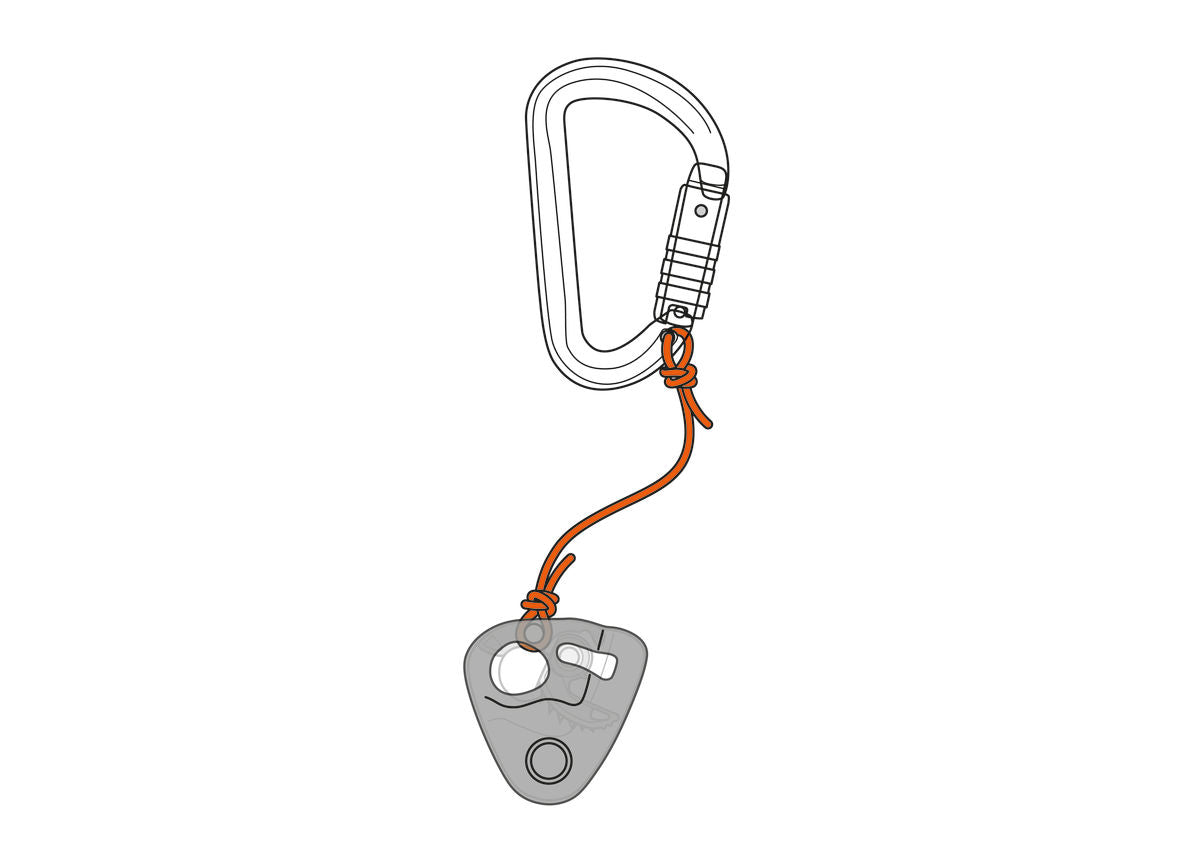

• Loss-resistant setups using the connection hole and a compatible Sm’D carabiner with cord

Users must be trained and competent, verify full-system compatibility, and follow Petzl’s technical notice.

Key specifications

• Reference: P053AA00
• Weight: 53 g

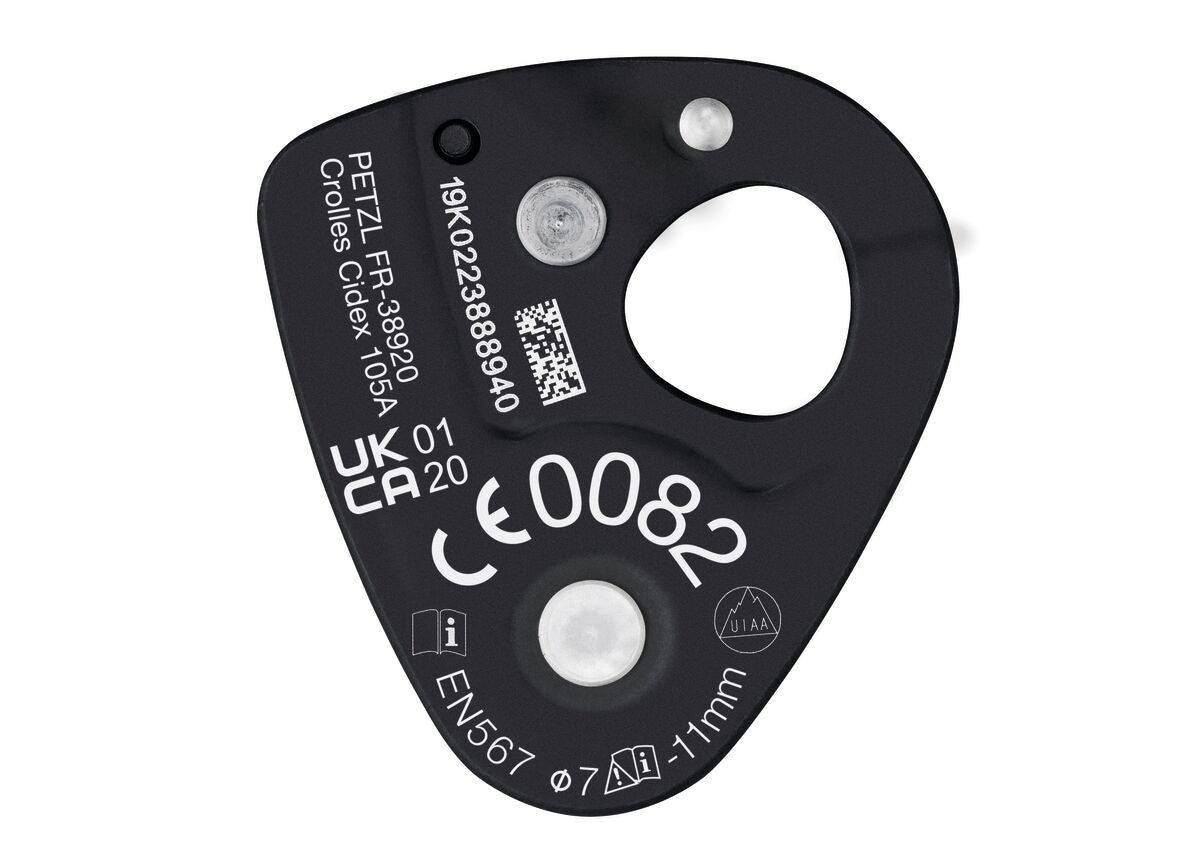

• Rope compatibility: 7–11 mm
• Sheave diameter: 18 mm
• Sheave type: Sealed ball bearings
• Efficiency: 91%
• Breaking strength: 15 kN
• Breaking strength as a progress-capture pulley: 4 kN
• Certifications: CE EN 567 and UIAA
• Compatible with RAD LINE 6 mm cord
• PUR’LINE 6 mm compatibility is limited to hauling a pack
• Manufacturer guarantee: 3 years

NANO TRAXION versus MICRO TRAXION

Selection guidance

Both devices provide 91% rated sheave efficiency and are designed to work on frozen or muddy ropes. NANO TRAXION reduces weight and packed size, while MICRO TRAXION adds the ability to lock its cam open and operate as a simple pulley.

Choose NANO TRAXION when minimum weight is the priority and progress capture is required throughout the intended setup. Choose Micro Traxion when the system benefits from a larger sheave and lock-open simple-pulley mode.

These are specialized life-safety devices. Users must obtain appropriate training, follow Petzl’s technical documentation, and verify every component in the complete system.

Further reading

• WildSnow: Small and Mighty — Petzl’s Nano Traxion
• Alpine Savvy: Petzl Traxion pulleys — Micro vs Nano
