Petzl SPIN L2 Pulley

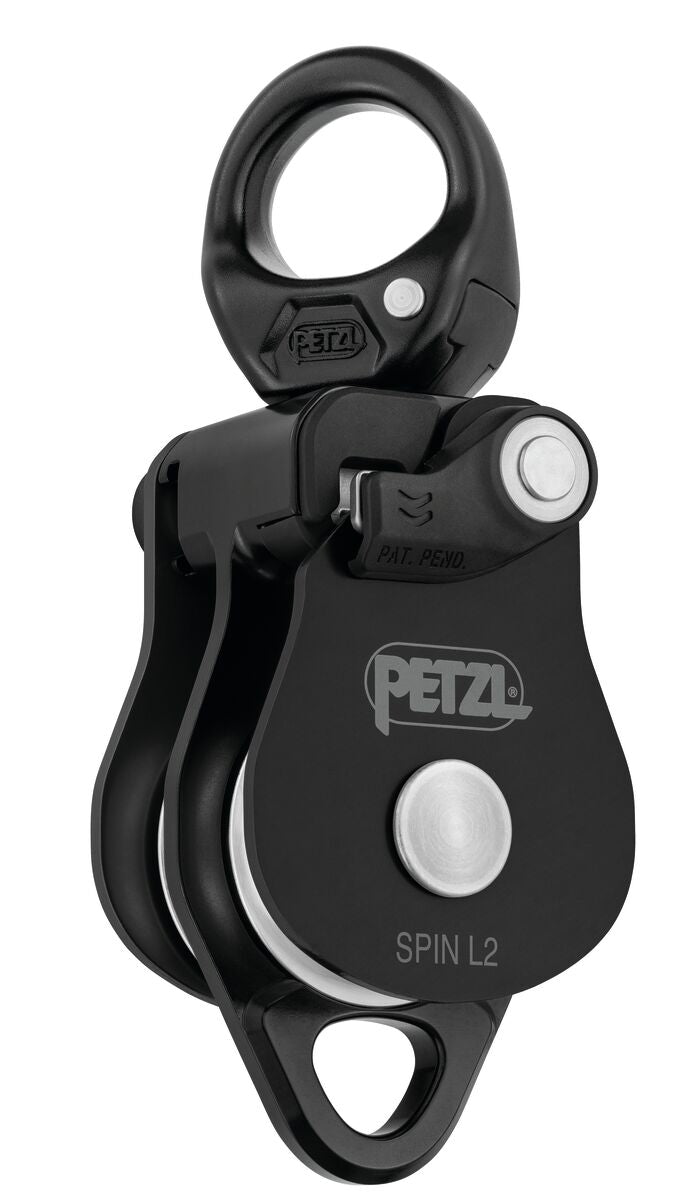

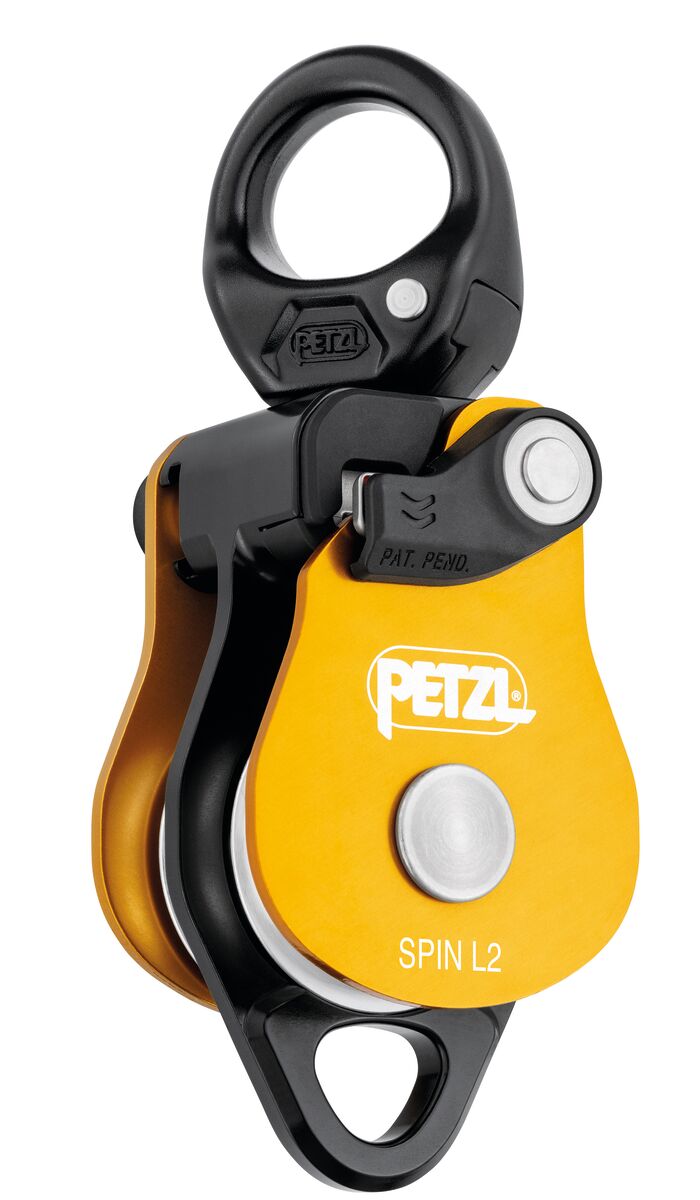

The Petzl SPIN L2 is a very high-efficiency double pulley with an integrated swivel. It is designed for straightforward setup of hauling systems and Tyrolean traverses in work-at-height and rescue operations.
Two parallel 38 mm sheaves run on sealed ball bearings for 95% efficiency. An auxiliary attachment point supports a variety of complex hauling configurations, while the moving side plate can be opened with the pulley still connected to the anchor.
Detailed product use cases

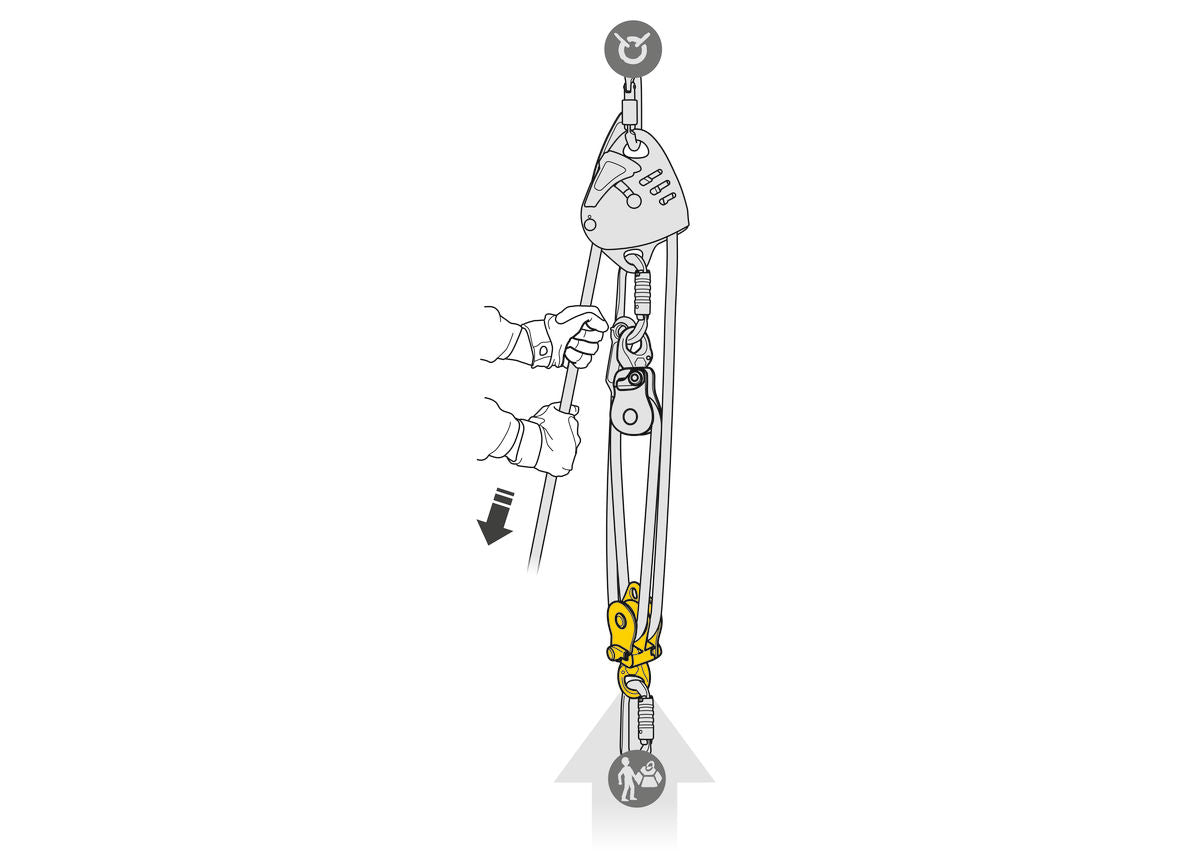

- Complex hauling systems: Parallel sheaves and an auxiliary attachment point support advanced mechanical-advantage configurations.
- Professional rescue: High-efficiency double-pulley systems within Petzl’s stated ratings.
- Tyrolean traverses: Suitable for properly engineered work-at-height and rescue systems.
- Anchor-connected rigging: Install the rope while the pulley remains connected to the anchor.
- Load orientation: The swivel allows the pulley to orient under load and accepts compatible connectors, ropes, or slings.
Users must be trained and competent, verify the complete system, and follow Petzl’s technical notice and applicable professional standards.
Key features

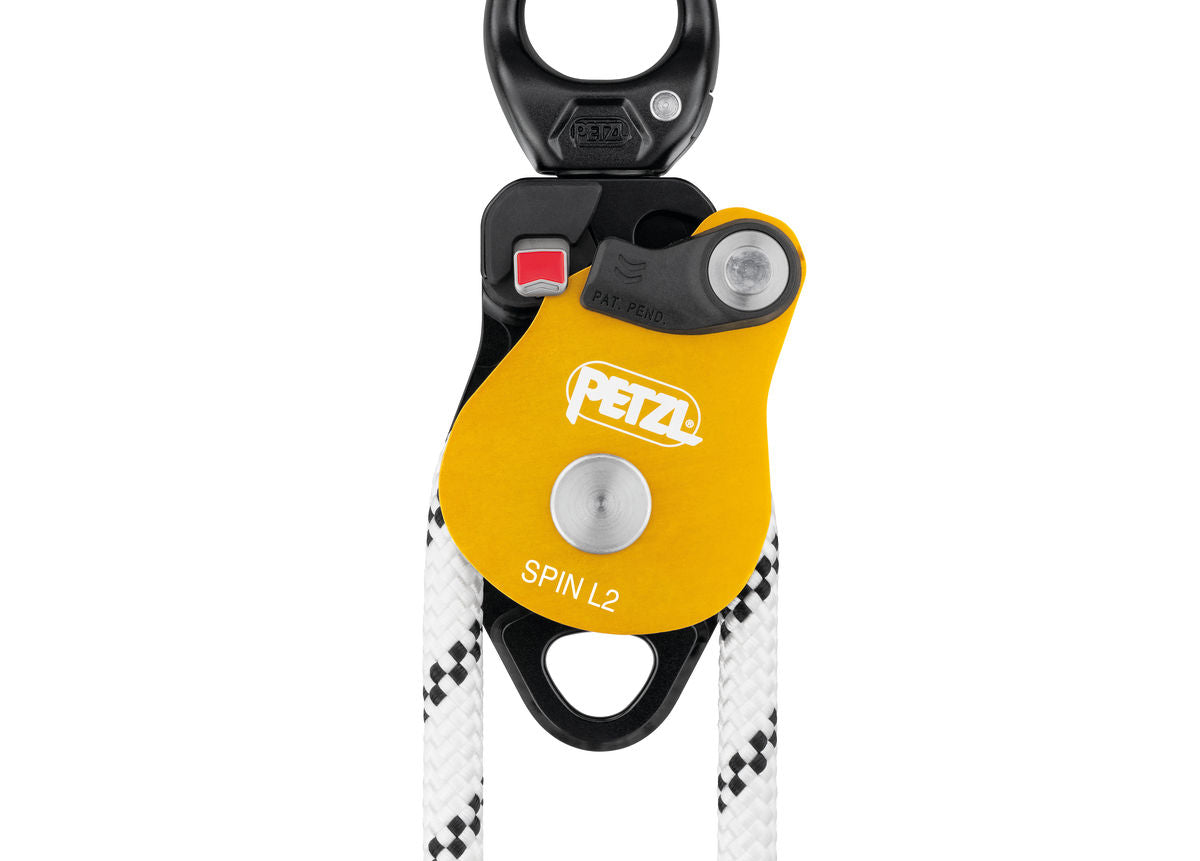

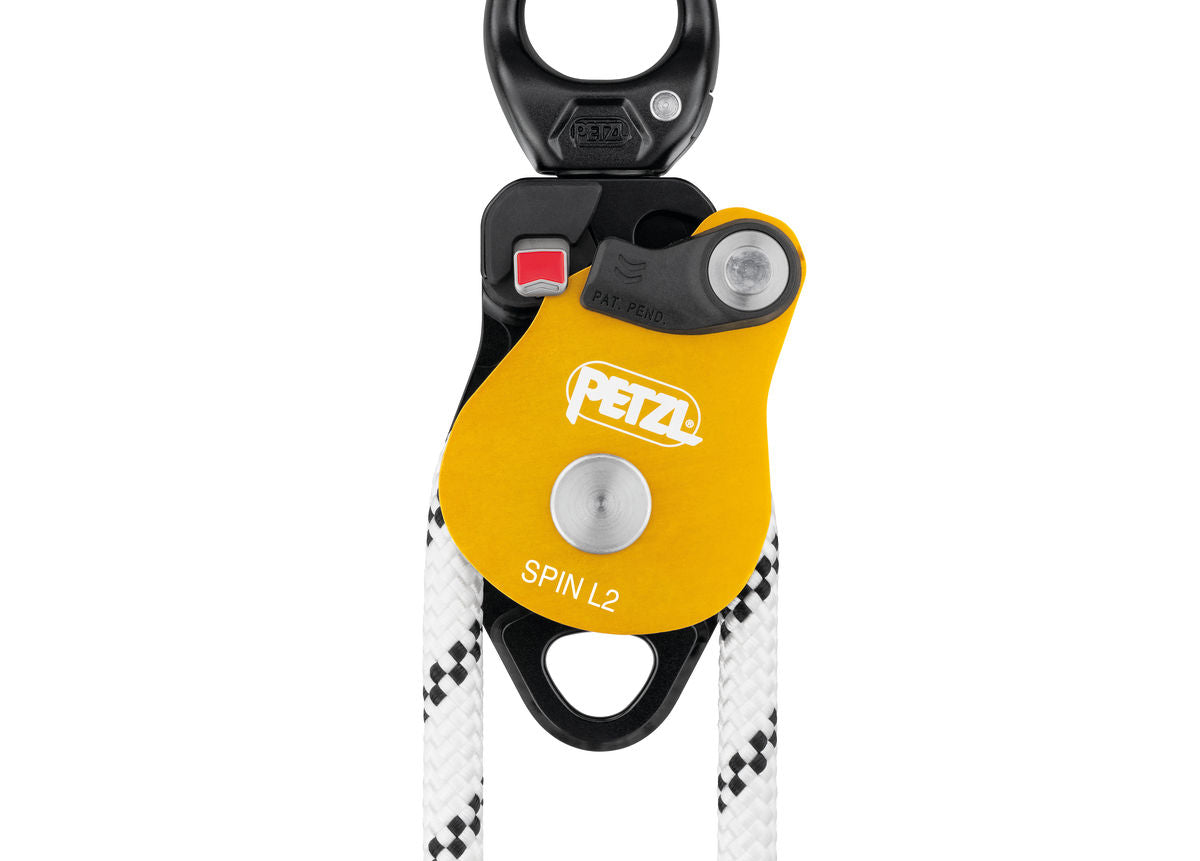

- Double pulley with two parallel sheaves
- Auxiliary attachment point for complex hauling systems

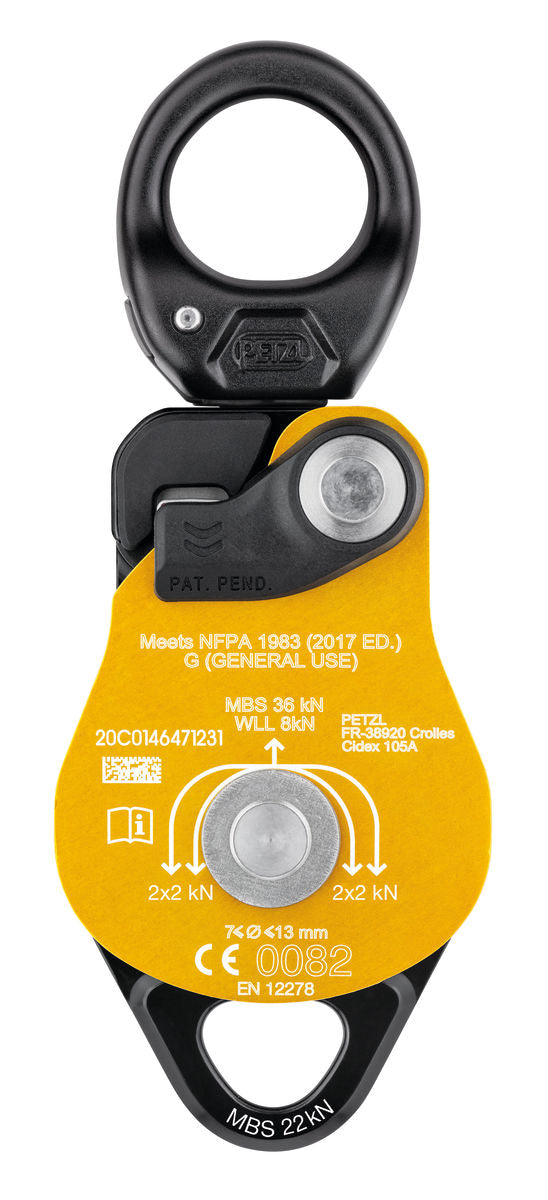

- Triple-action moving-side-plate opening, usable with gloves

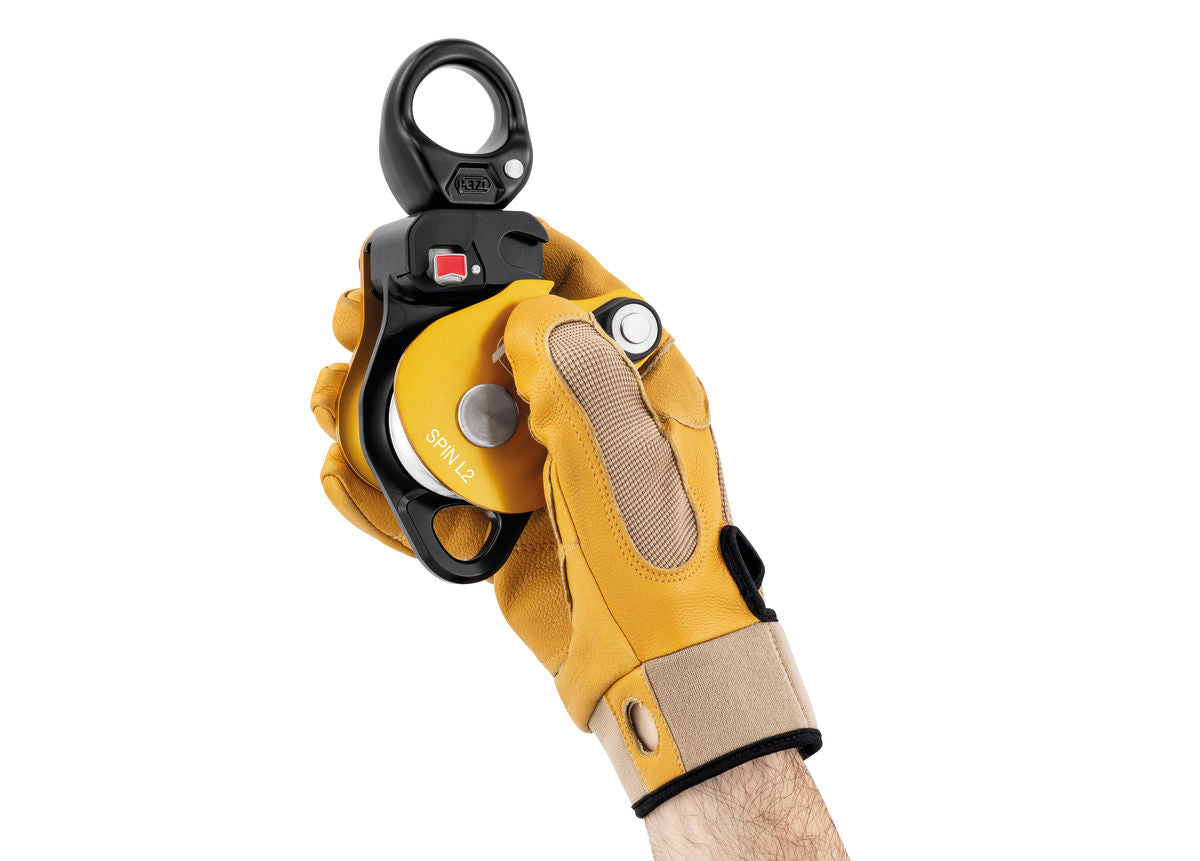

- Rope installation while connected to the anchor

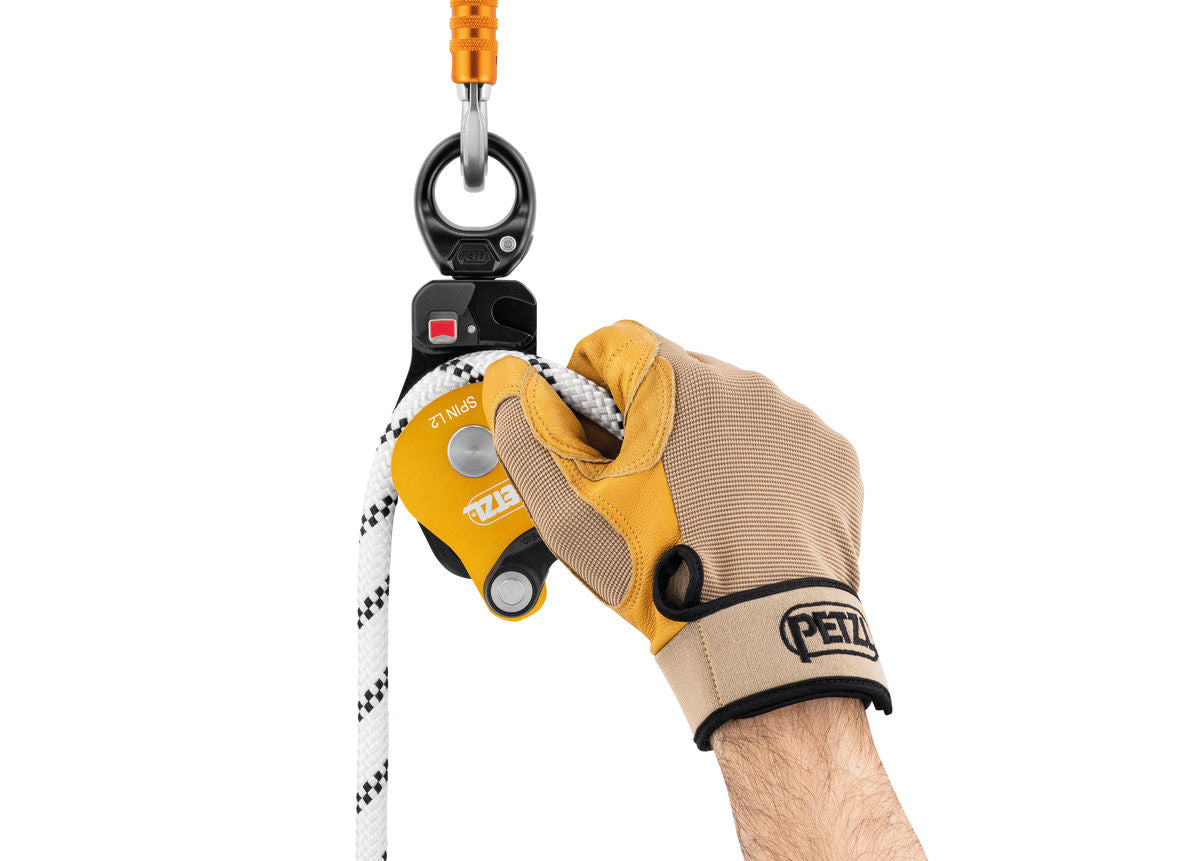

- Red unlocked-side-plate indicator
- Protected rope path
- Large sealed-ball-bearing sheaves for 95% efficiency
- Swivel allows orientation under load and accepts up to three carabiners
Specifications
- Reference: P001CA00
- Colour: Yellow
- Weight: 480 g
- Rope compatibility: 7–13 mm
- Sheave diameter: Two 38 mm sheaves
- Sheave type: Sealed ball bearings
- Efficiency: 95%
- Maximum working load: 8 kN, with 3 kN per strand as stated by Petzl
- Breaking strength: 36 kN
- Materials: Aluminium, stainless steel, and nylon
- Certifications: CE EN 12278, NFPA 2500 Pulley General Use, UIAA, and XF 494:FZL-H-T9.5/13
- Manufacturer guarantee: 3 years
SPIN S1 versus SPIN L1 versus SPIN L2
| Feature | SPIN S1 | SPIN L1 | SPIN L2 |
|---|---|---|---|
| Pulley format | Compact single | Large single | Large double |
| Weight | 145 g | 290 g | 480 g |
| Rope range | 7–11 mm | 7–13 mm | 7–13 mm |
| Sheave diameter | 25 mm | 38 mm | Two 38 mm sheaves |
| Efficiency | 91% | 95% | 95% |
| Maximum working load | 5 kN | 8 kN | 8 kN |
| Breaking strength | 23 kN | 36 kN | 36 kN |
| Best fit | Compact technical rescue, hauling, load deviation, and tensioned-highline systems | Higher-load single-pulley hauling, load deviation, and Tyrolean systems | Complex hauling systems requiring parallel sheaves and an auxiliary attachment point |
Selection guidance
Choose SPIN S1 when compactness and low carried weight are the main priorities. Choose SPIN L1 when a larger single sheave, 95% efficiency, and higher load ratings are required. Choose SPIN L2 when the system needs a double pulley and auxiliary attachment point for more complex hauling configurations.
For simpler fixed-side-plate hauling and load-deviation systems, compare the Petzl FIXE. For progress-capture applications, see Micro Traxion and Nano Traxion.
